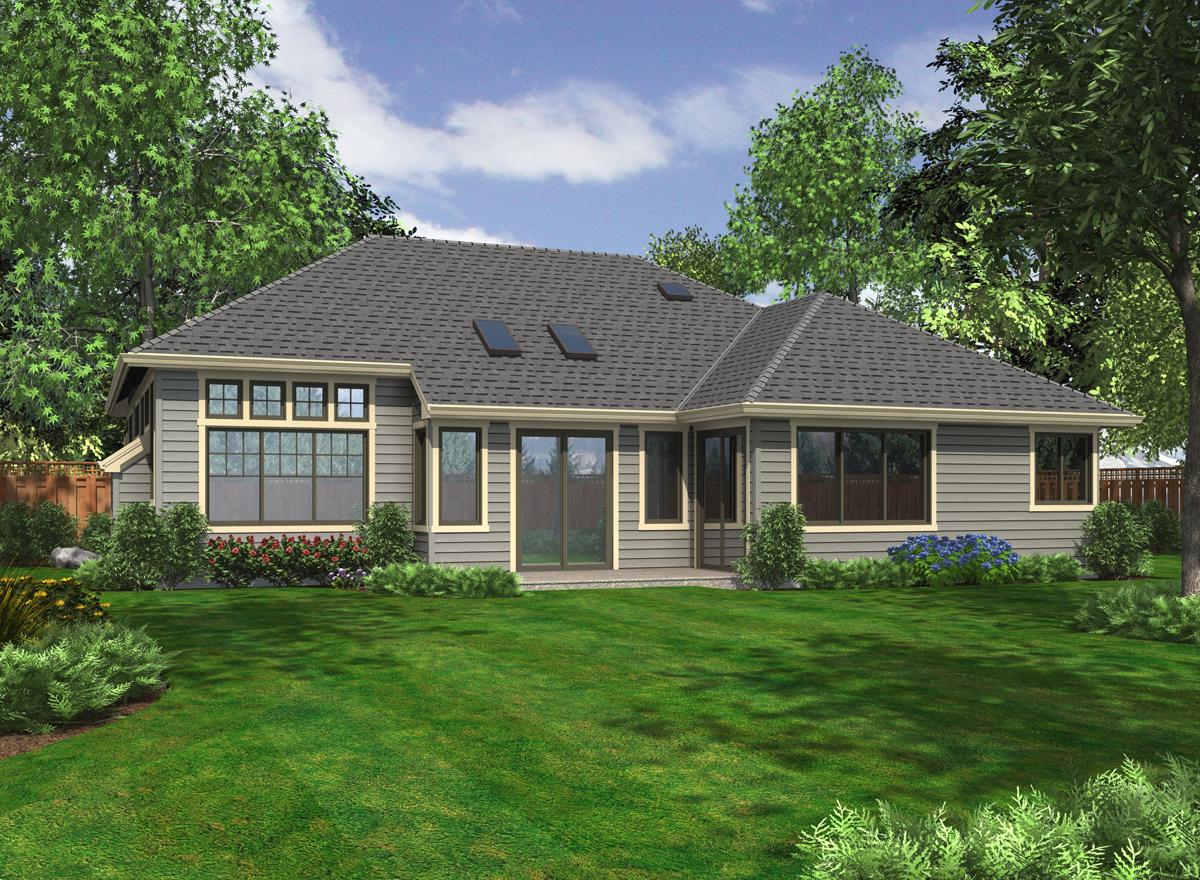

Rear Rendering

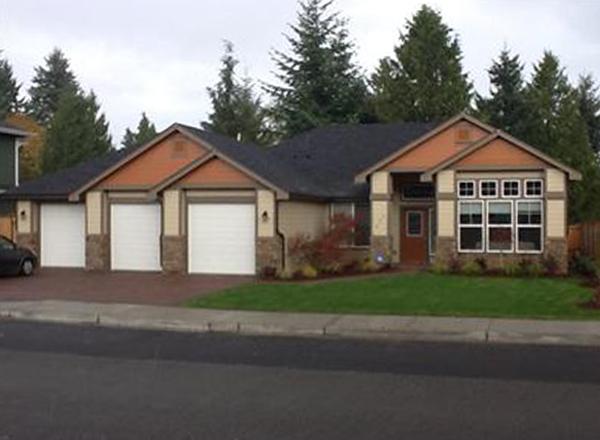

Front Photo

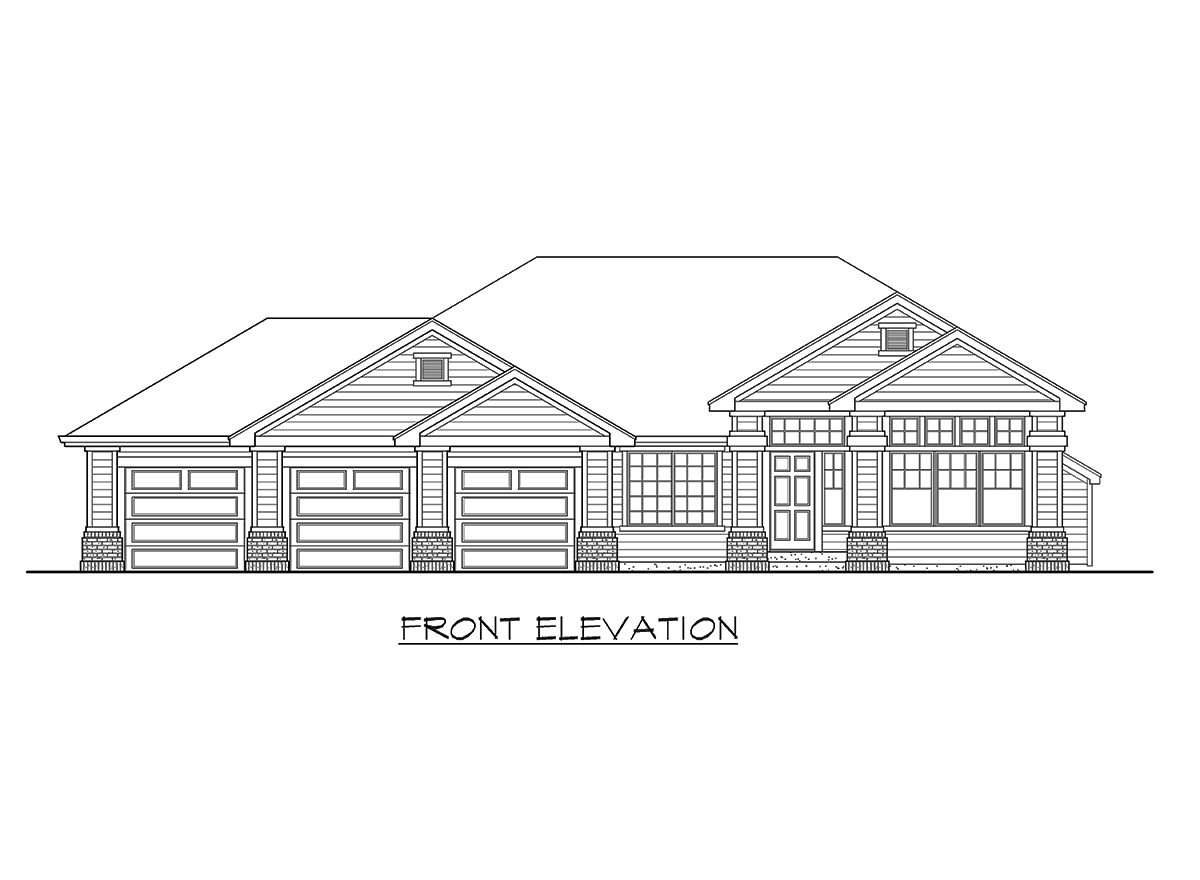

Front Elevation

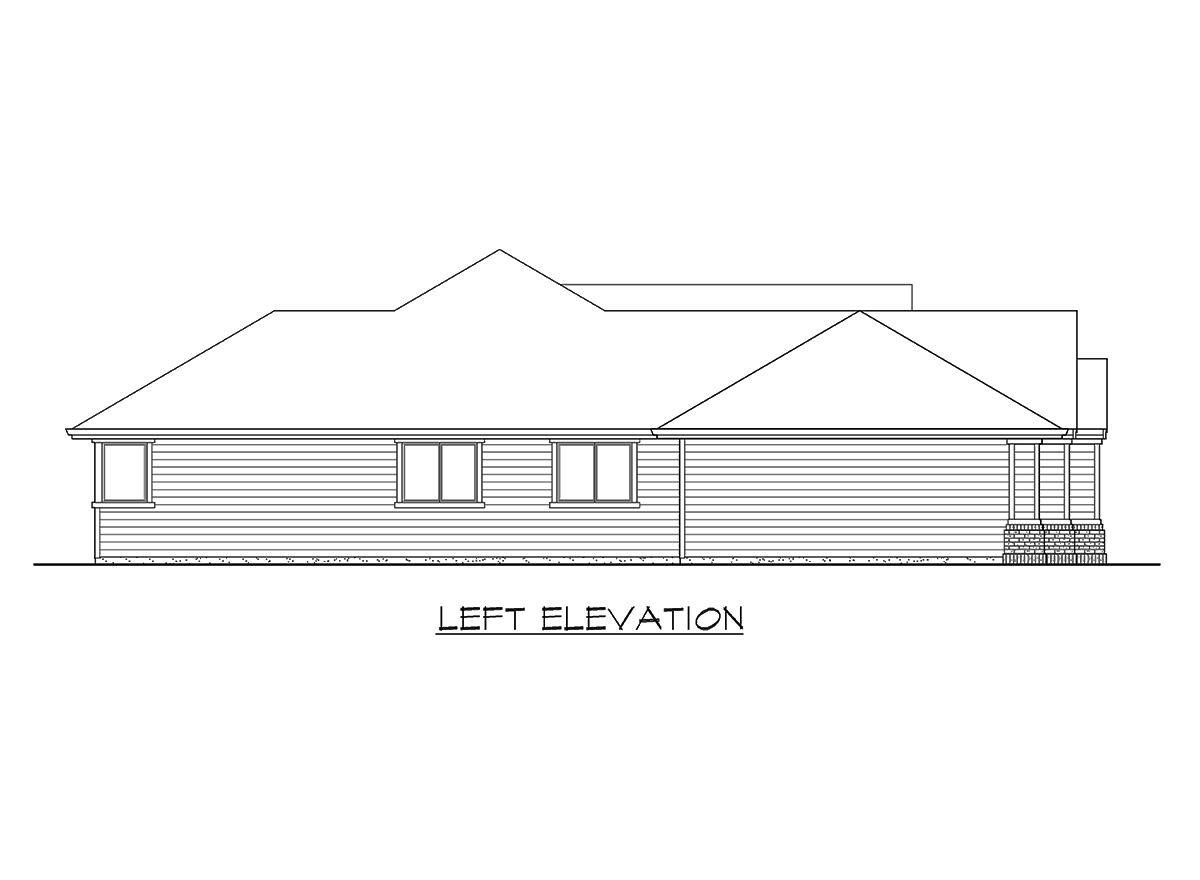

Left Elevation

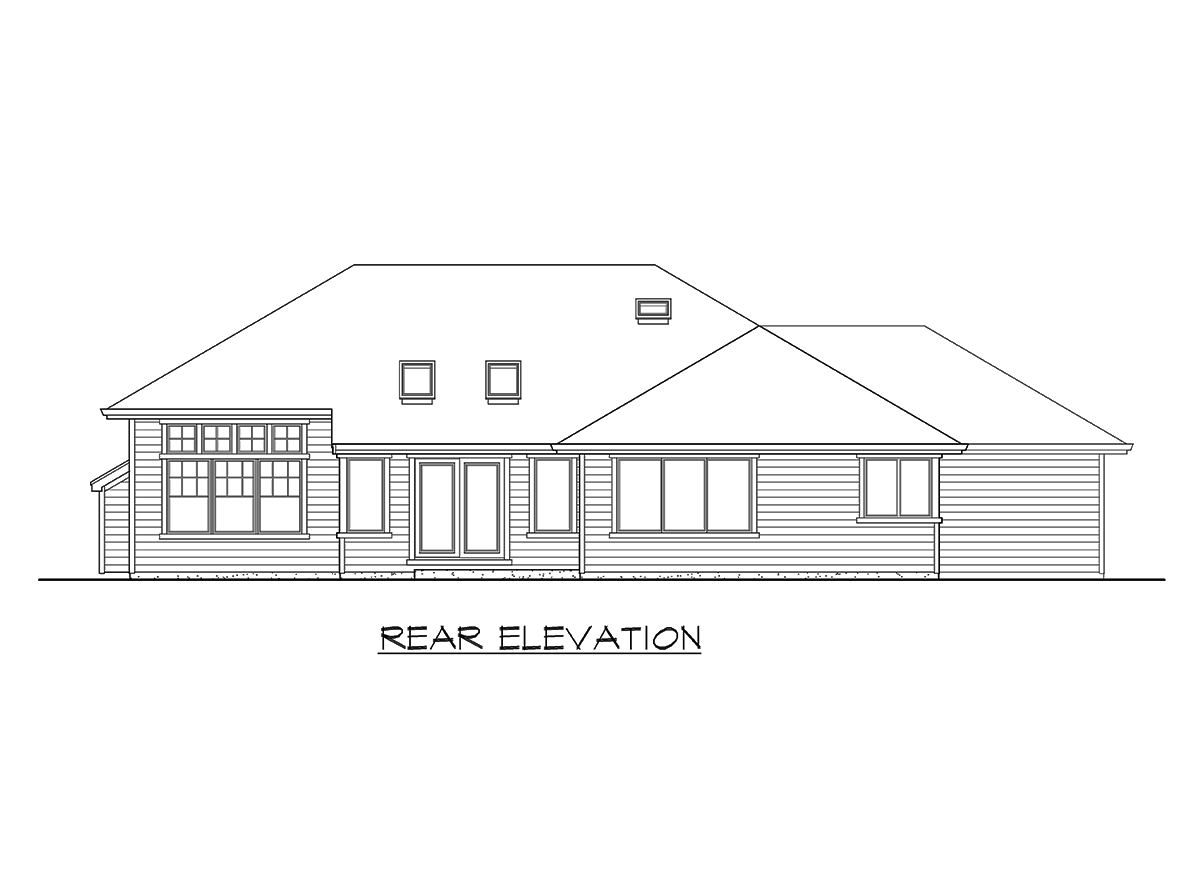

Rear Elevation

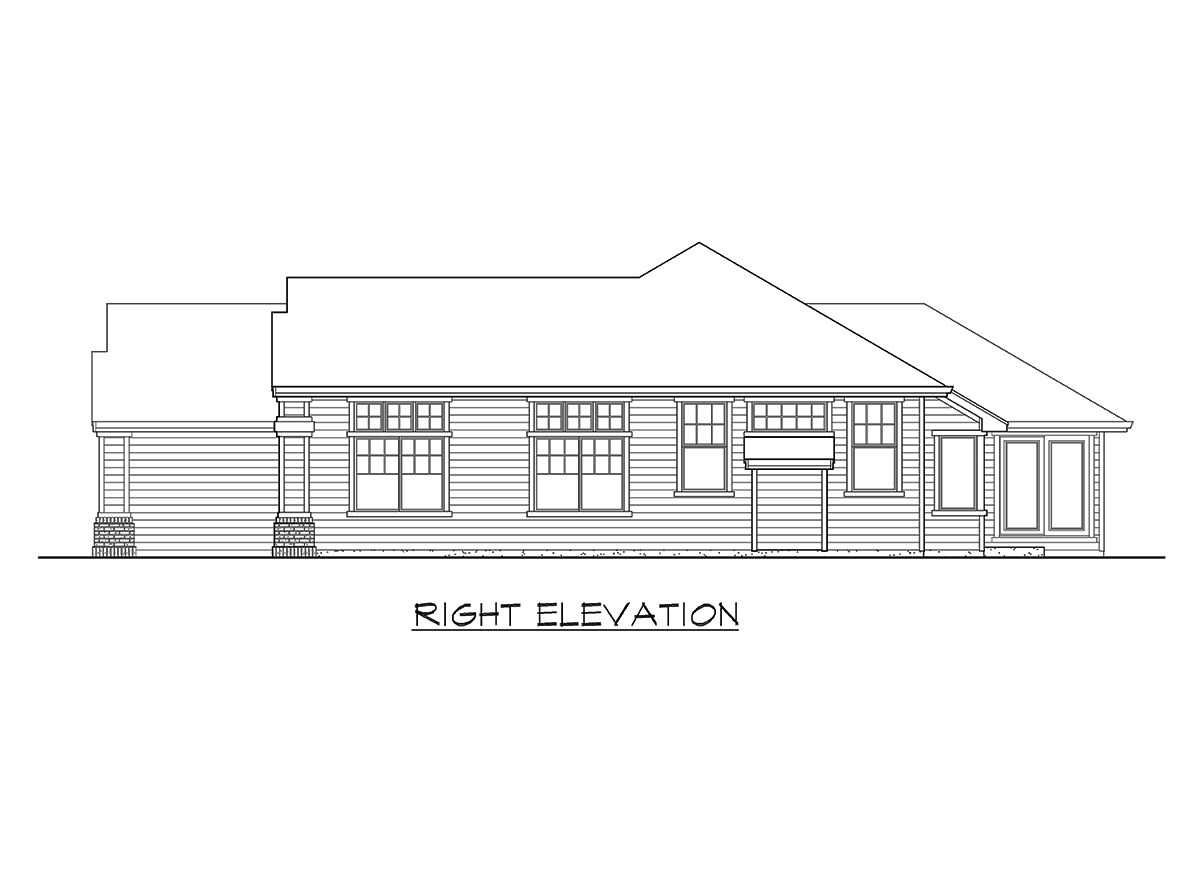

Right Elevation
Front Rendering
Rear Rendering
Front Photo
Front Elevation
Left Elevation
Rear Elevation
Right Elevation

Plan Pricing

$0

ARBON VALLEY

R2170A3F-0
  • Total Area:2170 Sq. Ft.
  • Garage Area:777 Sq Ft
  • Garage Size:3
  • Stories:1
  • Bedrooms:3
  • Full Baths:2
  • Width:65'-0"
  • Depth:67'-0"
  • Height:19'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

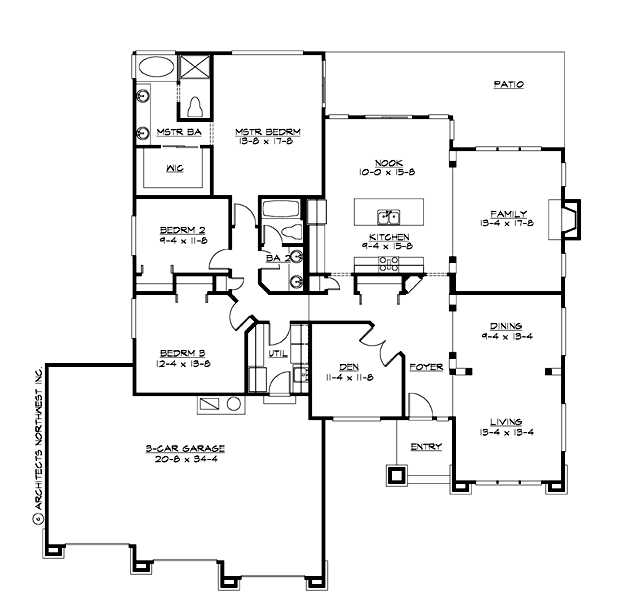

R2170A3F-0 Arbon Valley Main Floor
Main Floor
PLAN DETAILS FOR THE ARBON VALLEY - PLAN R2170A3F-0
Area Summary
  • Total Area:2170 Sq. Ft.
  • Main Floor:2170 Sq. Ft.
  • Garage Floor:777 Sq. Ft.
General Information
  • Stories:1
  • Width:65'-0"
  • Depth:67'-0"
  • Height:19'-6"
Architectural Style
  • Contemporary
  • Craftsman
  • Northwest
Number of Rooms
  • Bedrooms:3
  • Full Baths:2
Garage
  • Garage Size:3
  • Garage Door Location:Front
Roof Pitches
  • Primary:7:12
Wall Heights
  • Main:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Den/Office
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Main Floor Rear
  • Contemporary Home Plans
  • Craftsman House Plans
  • Northwest Floor Plans
  • Small House Plans
  • View Lot (Rear) Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
