Plan Pricing

$0

MAGELLAN COVE

M3980A3F-0
  • Total Area:3975 Sq. Ft.
  • Garage Area:685 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:5
  • Full Baths:4
  • Half Baths:1
  • Width:94'-6"
  • Depth:36'-6"
  • Height:23'-0"
  • Foundation:Crawl Space
PLAN DETAILS FOR THE MAGELLAN COVE - PLAN M3980A3F-0
Area Summary
  • Total Area:3975 Sq. Ft.

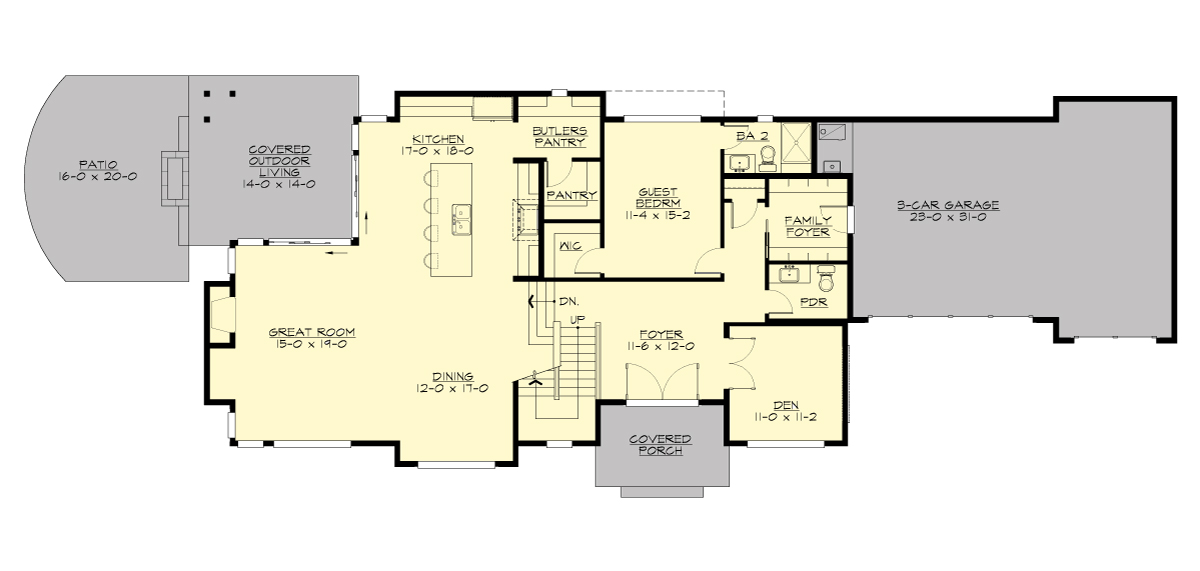

  • Main Floor:1800 Sq. Ft.

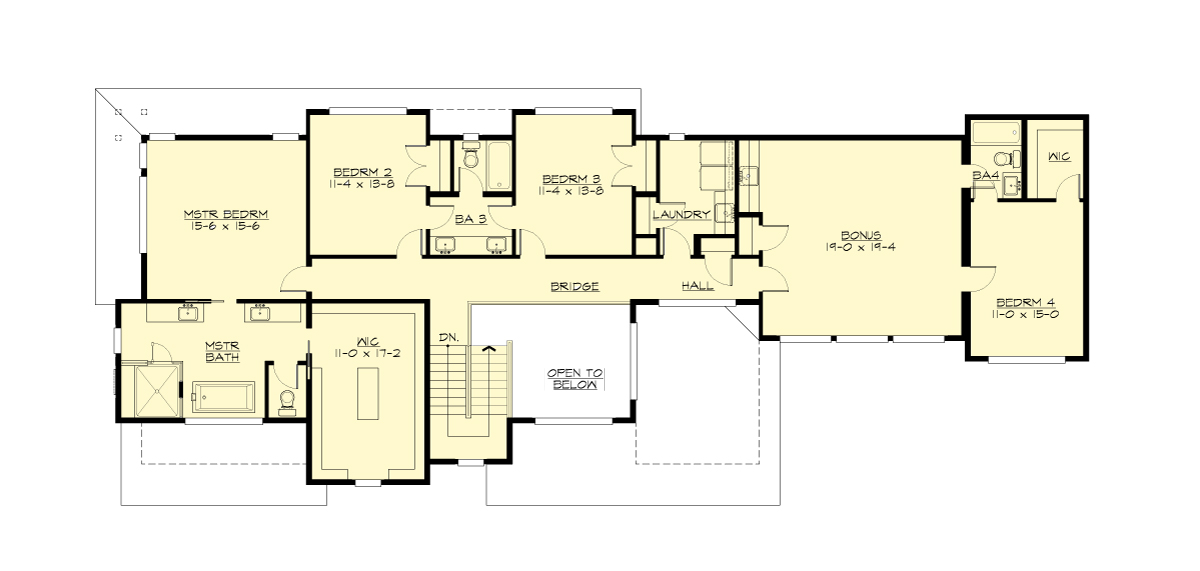

  • Upper Floor:2175 Sq. Ft.
  • Garage Floor:685 Sq. Ft.
General Information
  • Stories:2
  • Width:94'-6"
  • Depth:36'-6"
  • Height:23'-0"
Architectural Style
  • Contemporary
  • Modern
  • Northwest
Number of Rooms
  • Bedrooms:5
  • Full Baths:4
  • Half Baths:1
Garage
  • Garage Size:3
  • Garage Door Location:Front
Roof Pitches
  • Primary:1:12
Wall Heights
  • Main:11'-0"
  • Upper:9'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Combination
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features

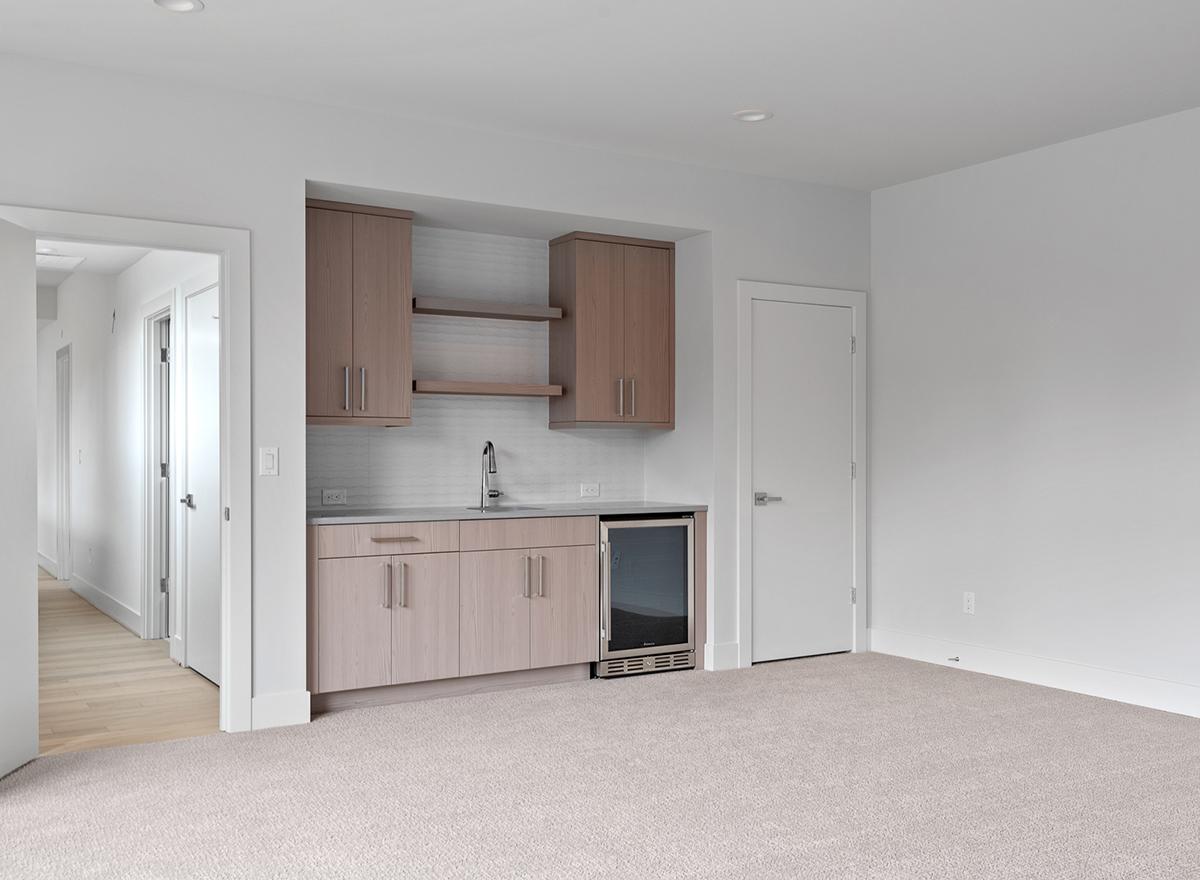

  • Bonus Space @ & Upper Floor
  • Den/Office

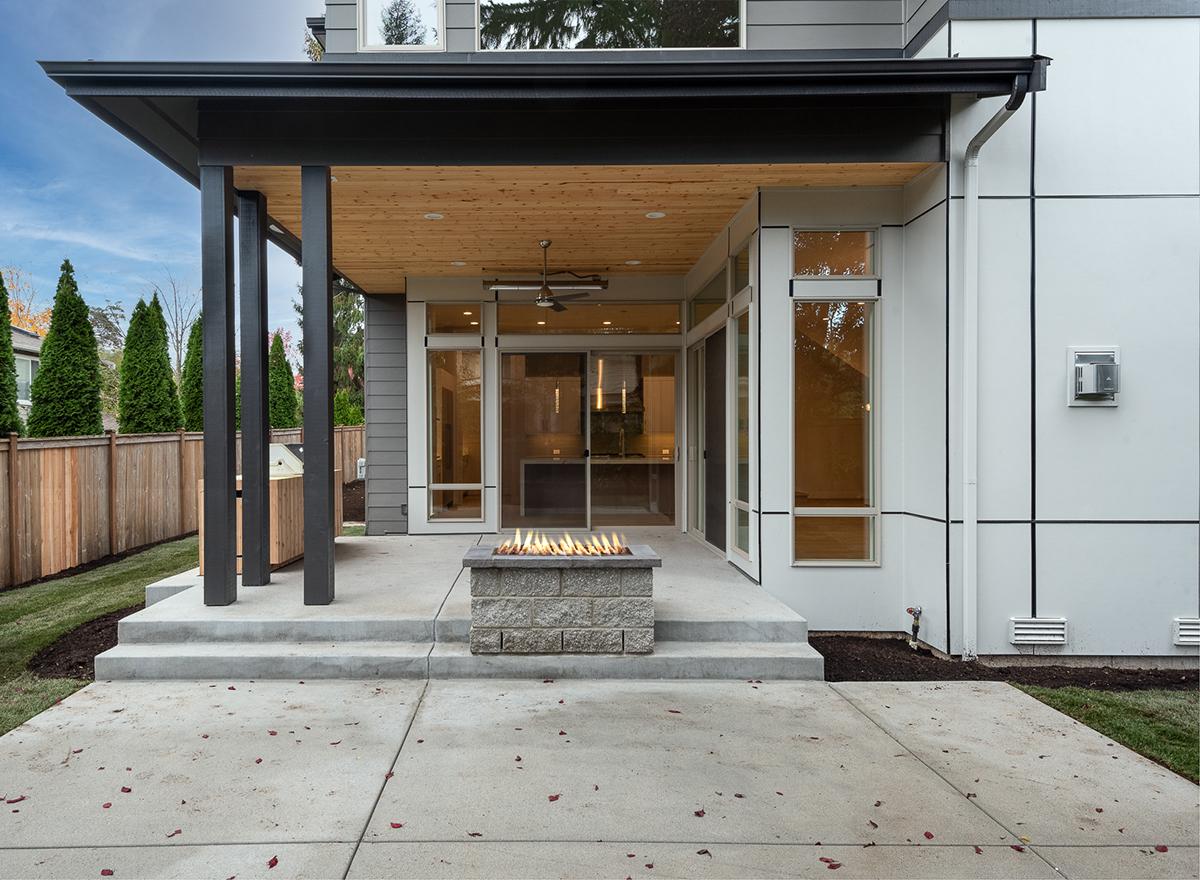

  • Rear Porch

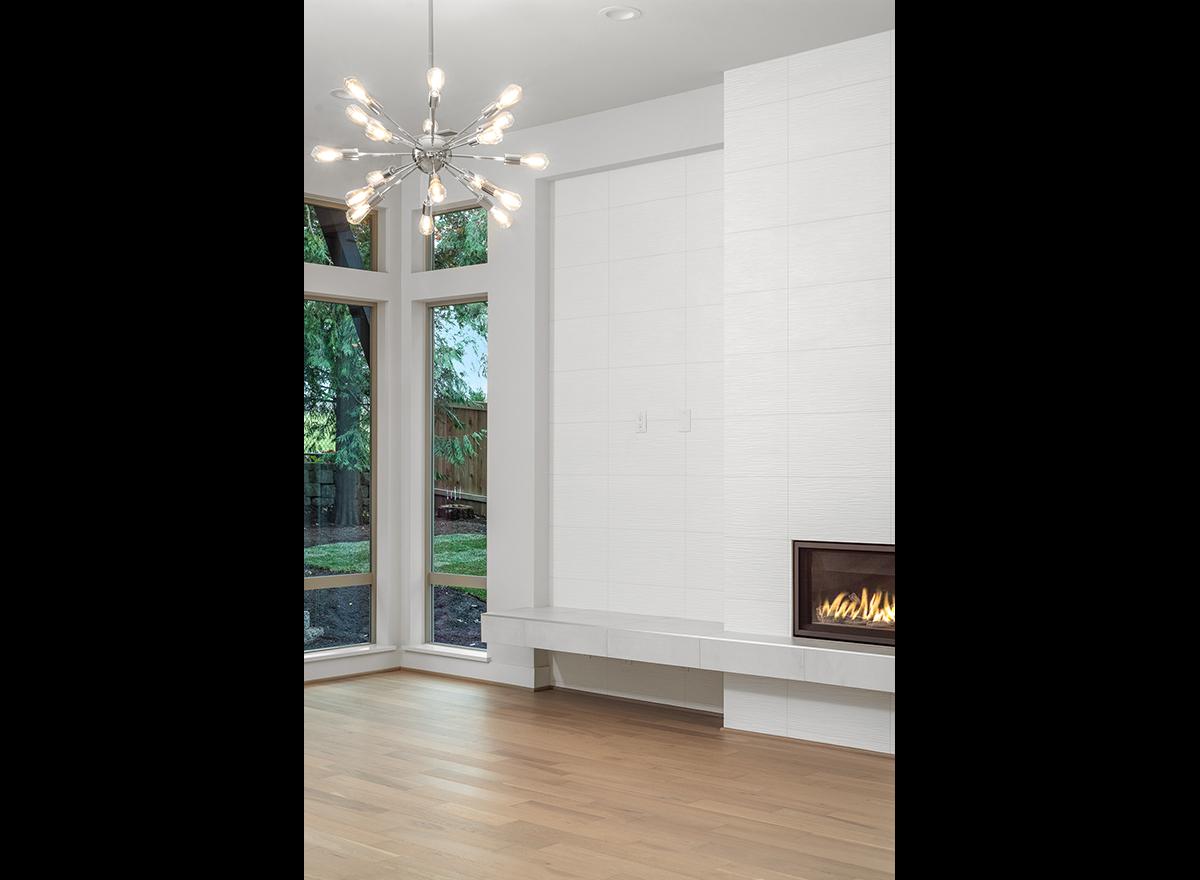

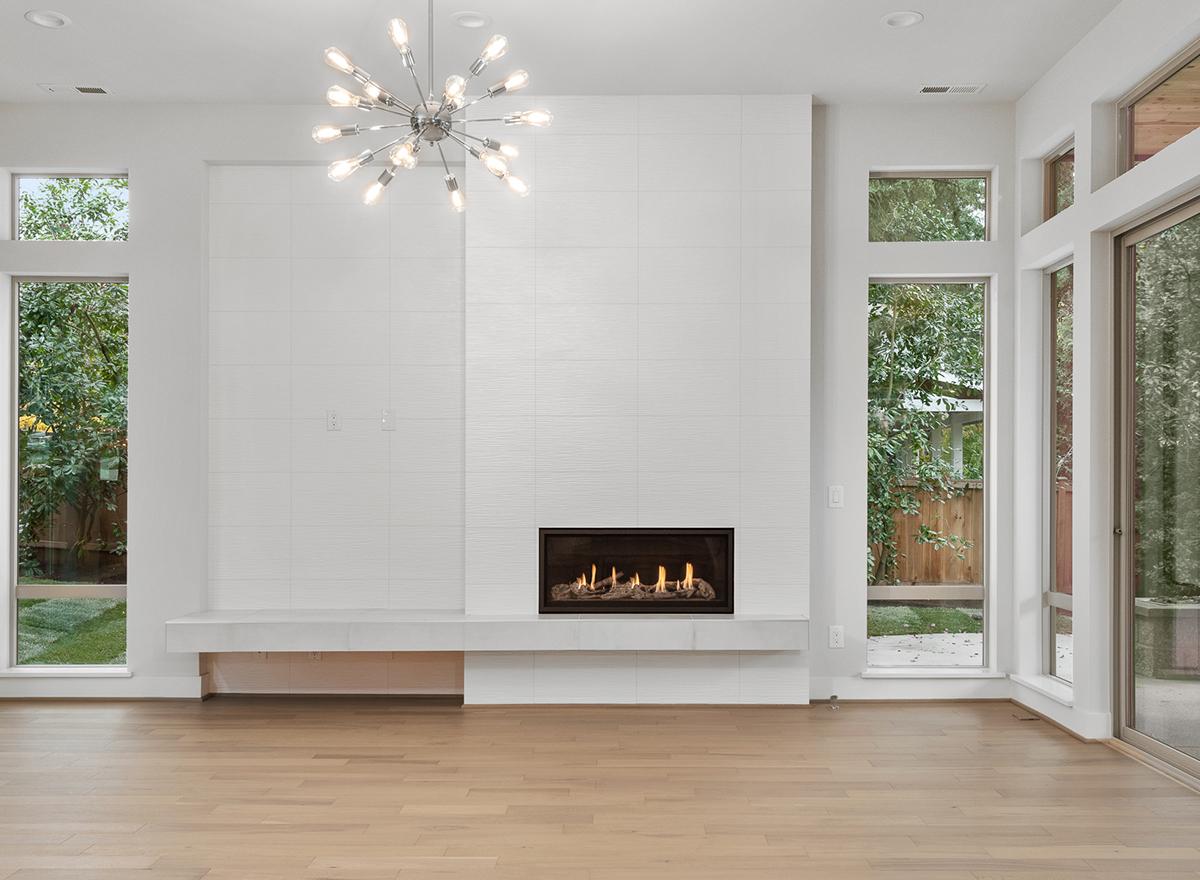

  • Great Room

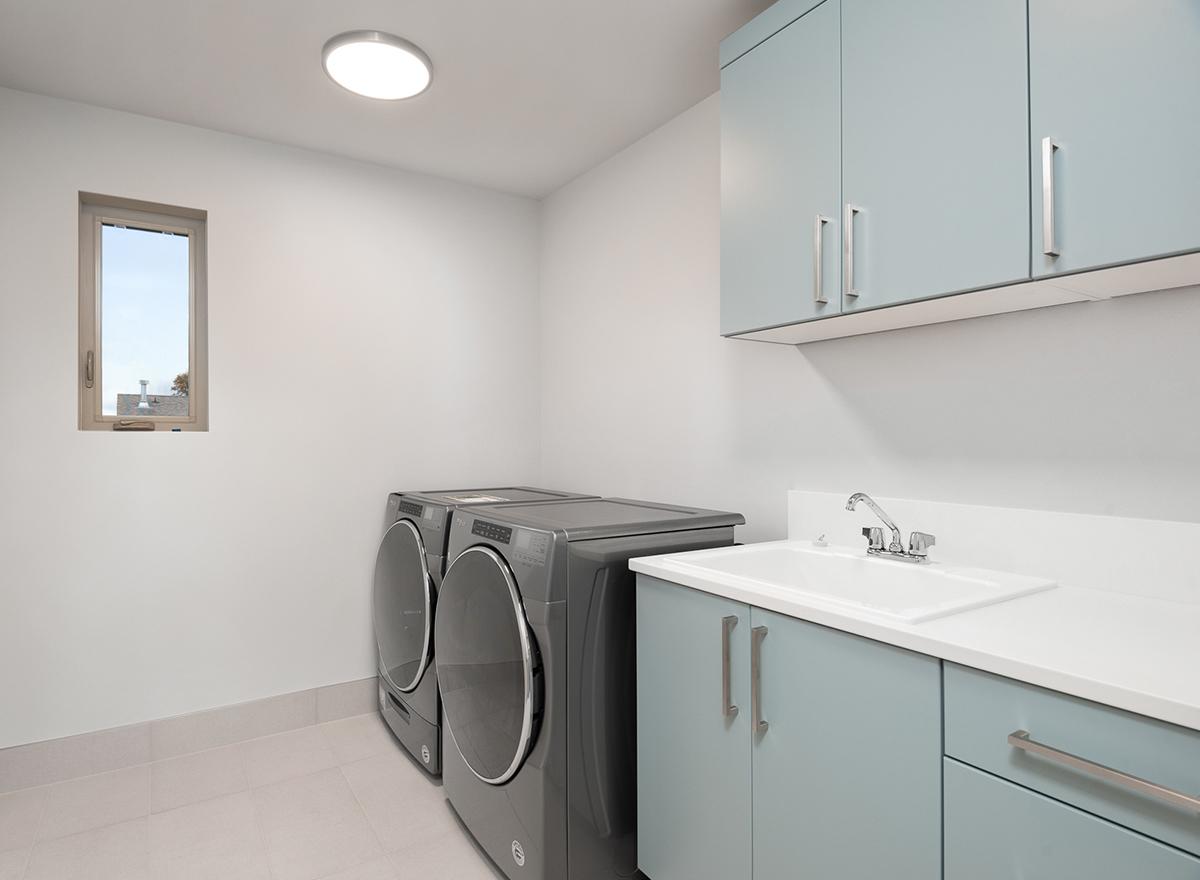

  • Laundry Room @ & Upper Floor

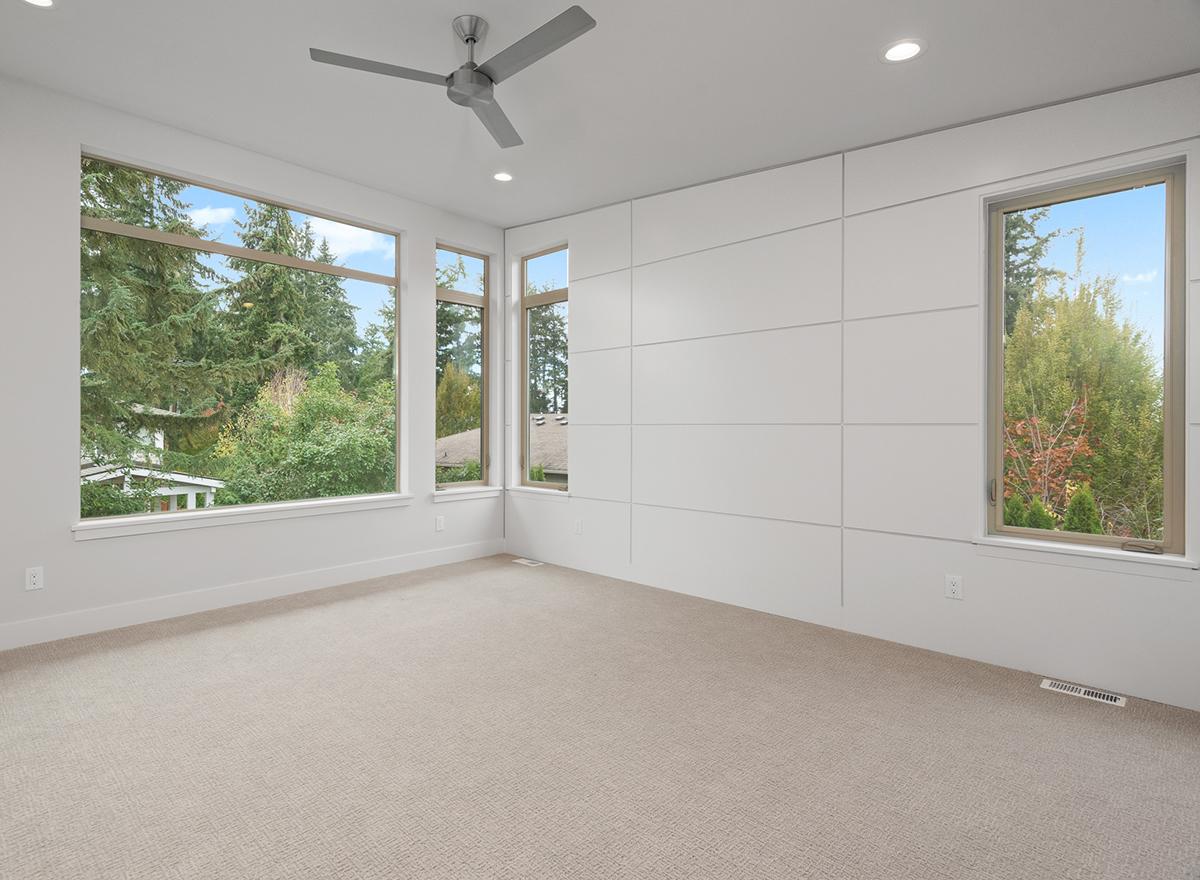

  • Master Bedroom @ Upper Floor Rear
  • Contemporary Home Plans
  • Modern Home Plans
  • Northwest Floor Plans
  • View Lot (Front) Plans
  • Wide Lot House Plans
