Plan Pricing

$0

ANDREWS

M6029A3FT-0
  • Total Area:6029 Sq. Ft.
  • Garage Area:654 Sq Ft
  • Garage Size:3
  • Stories:3
  • Bedrooms:5
  • Full Baths:5
  • Half Baths:2
  • Width:45'-0"
  • Depth:61'-6"
  • Height:34'-10"
  • Foundation:Crawl Space
PLAN DETAILS FOR THE ANDREWS - PLAN M6029A3FT-0
Area Summary
  • Total Area:6029 Sq. Ft.
  • Main Floor:1785 Sq. Ft.
  • Upper Floor:2192 Sq. Ft.

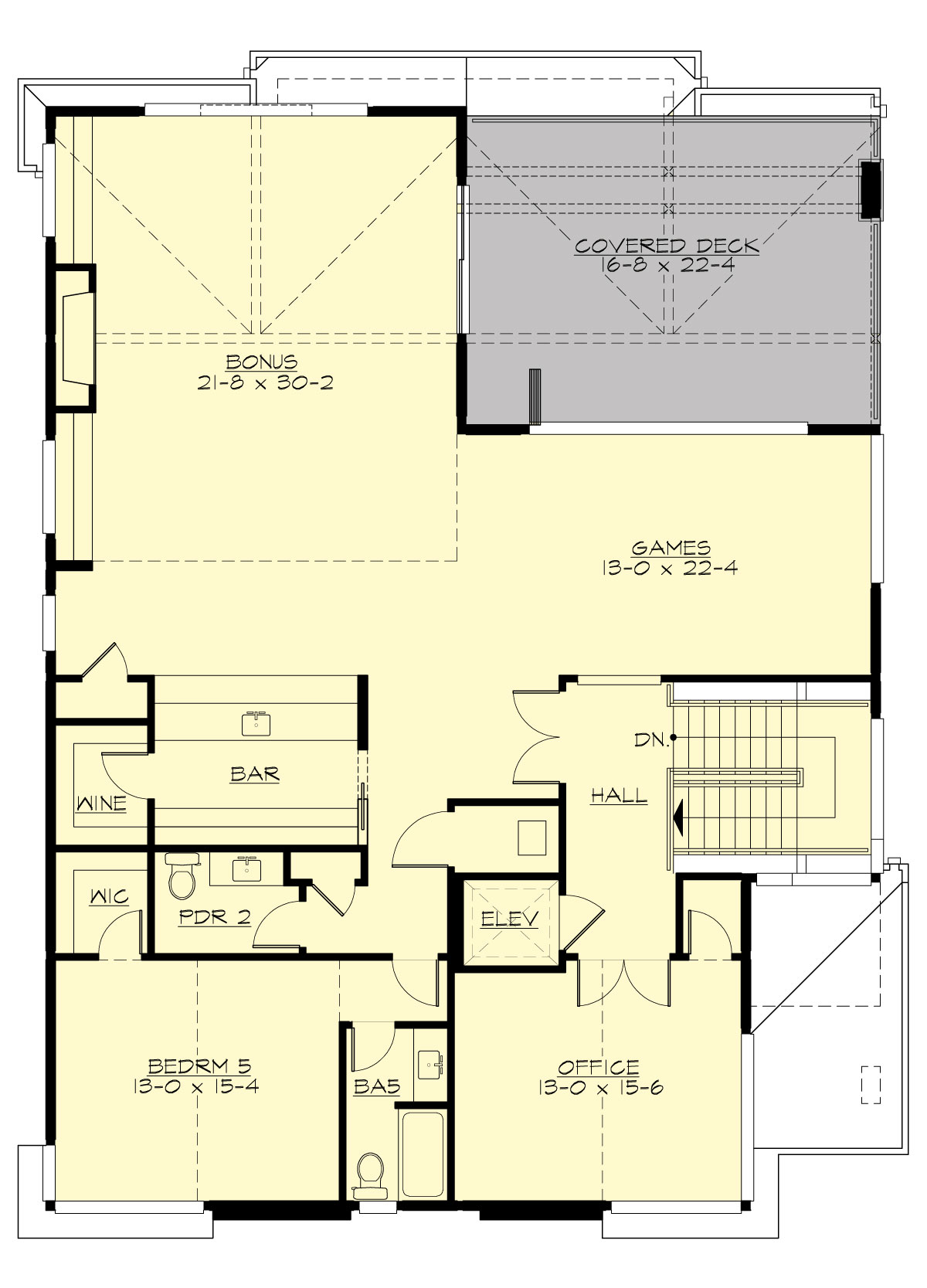

  • 3rd Floor:2052 Sq. Ft.
  • Garage Floor:654 Sq. Ft.
General Information
  • Stories:3
  • Width:45'-0"
  • Depth:61'-6"
  • Height:34'-10"
Architectural Style
  • Contemporary
  • Modern
  • Prarie
Number of Rooms
  • Bedrooms:5
  • Full Baths:5
  • Half Baths:2
Garage
  • Garage Size:3
  • Garage Door Location:Front
  • Garage Type: Tandem
Roof Pitches
  • Primary:4:12
  • Secondary:2:12
Wall Heights
  • Main:10'-0"
  • Upper:8'-0"
  • Lower:10'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Combination
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Third Floor
  • Den/Office
  • Front and Rear Porch
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Rear
  • Contemporary Home Plans
  • Modern Home Plans
  • Prairie Home Plans
  • View Lot (Rear) Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
