Front Rendering
Front Elevation
Left Elevation
Rear Elevation
Right Elevation
Front Rendering
Front Elevation

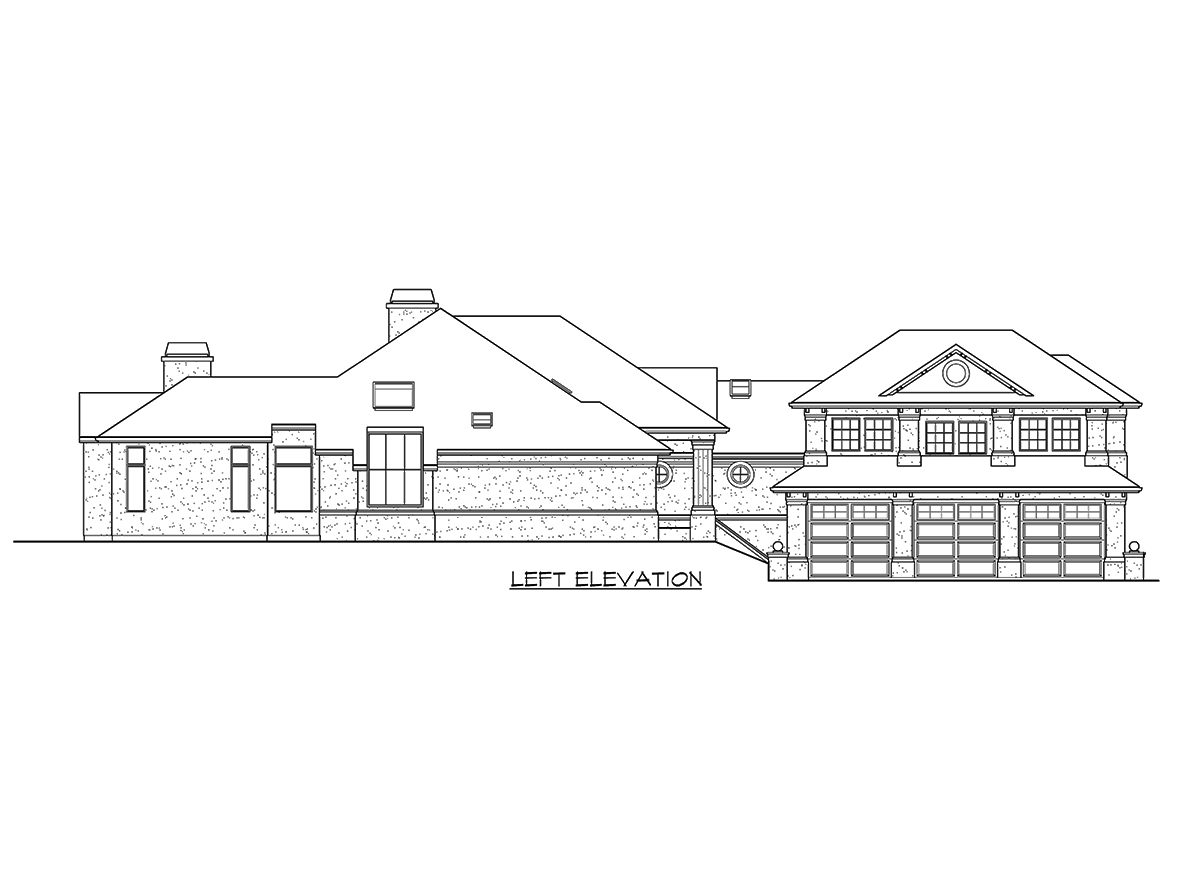

Left Elevation
Rear Elevation

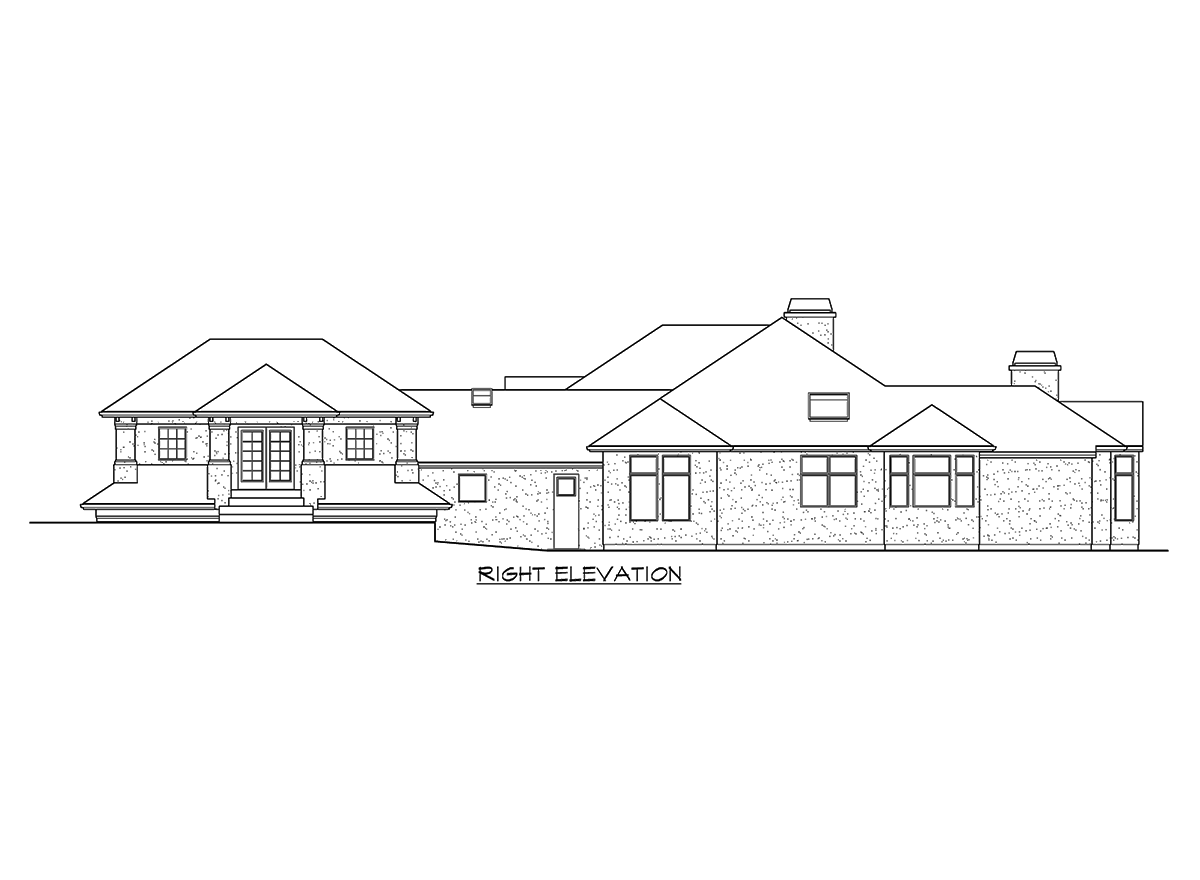

Right Elevation

Plan Pricing

$0

PASADENA

R4050A3SL-0
  • Total Area:4050 Sq. Ft.
  • Garage Area:1024 Sq Ft
  • Garage Size:3
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:2
  • Width:81'-0"
  • Depth:112'-0"
  • Height:23'-6"
  • Foundation:Crawl Space
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

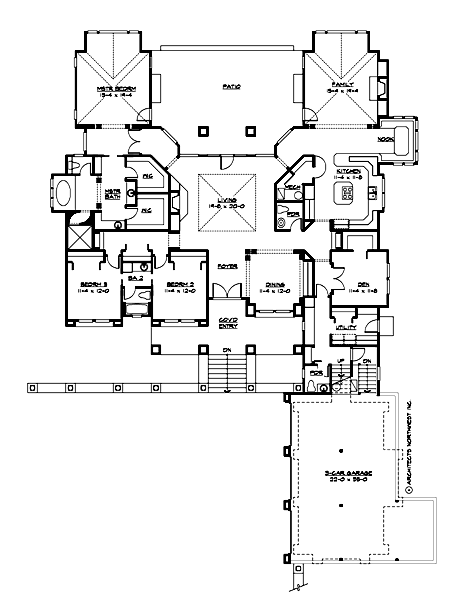

R4050A3SL-0 Pasadena Main Floor
Main Floor
R4050A3SL-0 Pasadena Upper Floor
Upper Floor
PLAN DETAILS FOR THE PASADENA - PLAN R4050A3SL-0
Area Summary
  • Total Area:4050 Sq. Ft.
  • Main Floor:3375 Sq. Ft.
  • Upper Floor:675 Sq. Ft.
  • Garage Floor:1024 Sq. Ft.
General Information
  • Stories:2
  • Width:81'-0"
  • Depth:112'-0"
  • Height:23'-6"
Architectural Style
  • European
  • Hampton
  • Traditional
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:2
Garage
  • Garage Size:3
  • Garage Door Location:Side
  • Garage Type: Lowered
Roof Pitches
  • Primary:8:12
Wall Heights
  • Main:10'-0"
  • Upper:9'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Front Porch
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Main Floor Rear
  • European House Plans
  • Hampton House Plans
  • Traditional House Plans
  • Luxury Home Designs
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
