Plan Pricing

$0

ROSEWOOD

M1905A2F-0
  • Total Area:1905 Sq. Ft.
  • Garage Area:436 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:4
  • Full Baths:2
  • Half Baths:1
  • Width:36'-0"
  • Depth:50'-0"
  • Height:24'-0"
  • Foundation:Crawl Space
PLAN DETAILS FOR THE ROSEWOOD - PLAN M1905A2F-0
Area Summary
  • Total Area:1905 Sq. Ft.

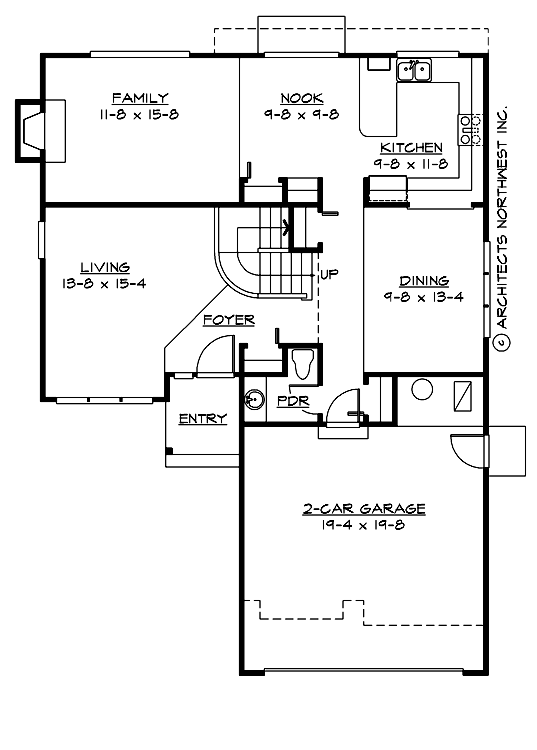

  • Main Floor:1000 Sq. Ft.

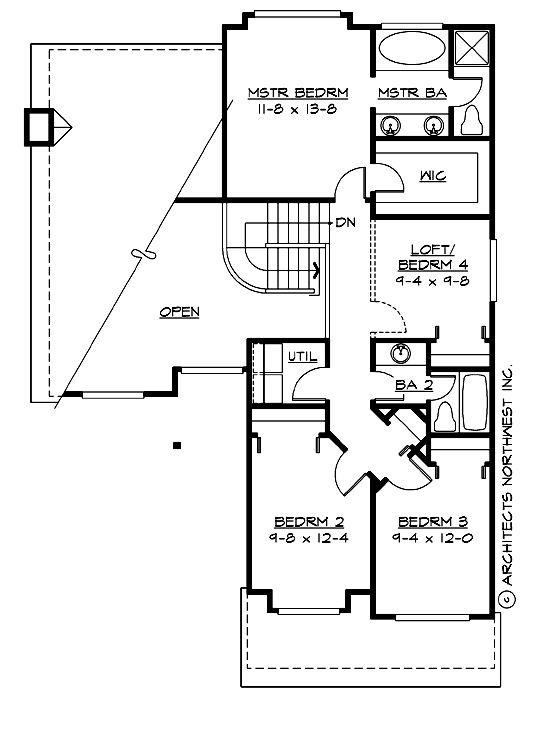

  • Upper Floor:905 Sq. Ft.
  • Garage Floor:436 Sq. Ft.
General Information
  • Stories:2
  • Width:36'-0"
  • Depth:50'-0"
  • Height:24'-0"
Architectural Style
  • Craftsman
  • Northwest
  • Traditional
Number of Rooms
  • Bedrooms:4
  • Full Baths:2
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:7:12
Wall Heights
  • Main:8'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Combination
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Rear
  • Craftsman House Plans
  • Northwest Floor Plans
  • Traditional House Plans
  • Small House Plans
Front Rendering

Mount Baker

M1835A2F-0
  • Total Area:1835 Sq. Ft.
  • Stories:2
  • Bedrooms:4
  • Full Baths:2

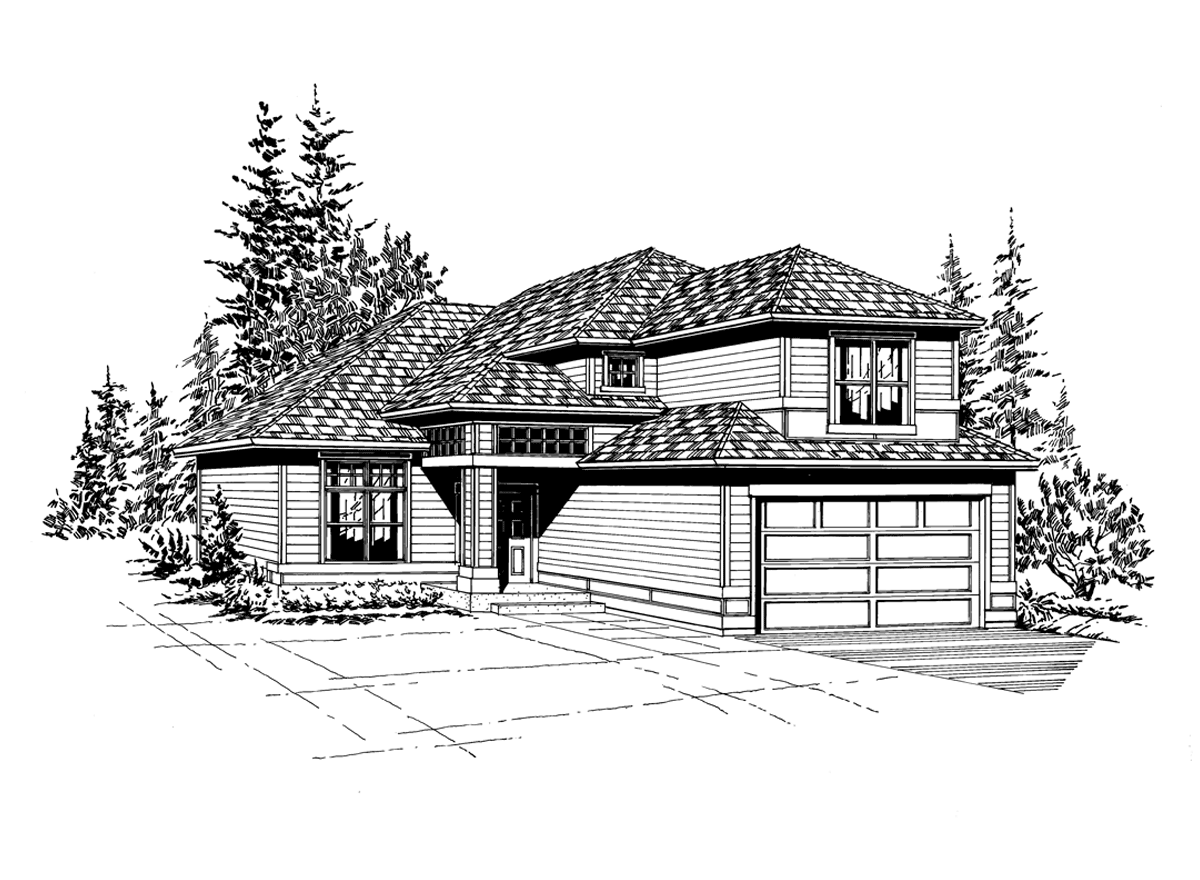

Front Rendering
