Plan Pricing

$0

BELMONT

M2333B2S-0
  • Total Area:2333 Sq. Ft.
  • Garage Area:421 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:3
  • Full Baths:2
  • Half Baths:1
  • Width:58'-0"
  • Depth:35'-0"
  • Height:25'-6"
  • Foundation:Crawl Space
PLAN DETAILS FOR THE BELMONT - PLAN M2333B2S-0
Area Summary
  • Total Area:2333 Sq. Ft.

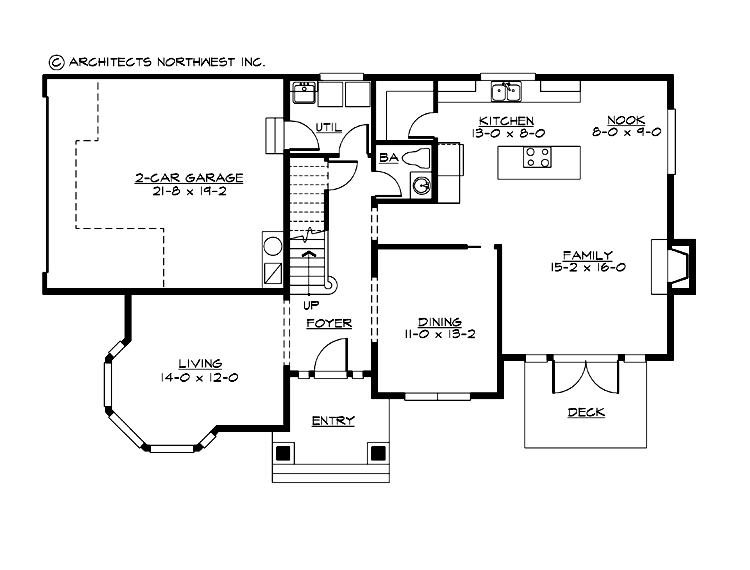

  • Main Floor:1191 Sq. Ft.

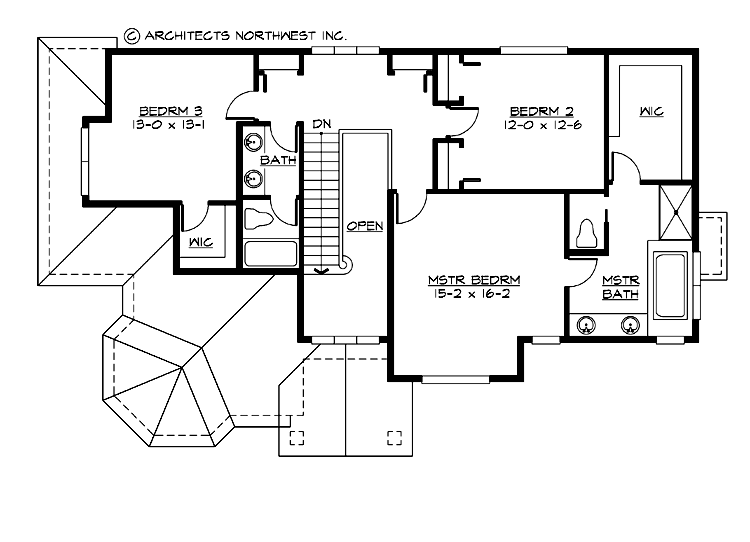

  • Upper Floor:1142 Sq. Ft.
  • Garage Floor:421 Sq. Ft.
General Information
  • Stories:2
  • Width:58'-0"
  • Depth:35'-0"
  • Height:25'-6"
Architectural Style
  • Contemporary
  • Northwest
  • Traditional
Number of Rooms
  • Bedrooms:3
  • Full Baths:2
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Side
Roof Pitches
  • Primary:6:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Upper Floor Front
  • Contemporary Home Plans
  • Northwest Floor Plans
  • Traditional House Plans
  • Narrow Lot House Plans
