Plan Pricing

$0

INNSBROOKE

M2848A2F-0
  • Total Area:2848 Sq. Ft.
  • Garage Area:429 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
  • Width:40'-0"
  • Depth:60'-0"
  • Height:26'-0"
  • Foundation:Crawl Space
PLAN DETAILS FOR THE INNSBROOKE - PLAN M2848A2F-0
Area Summary
  • Total Area:2848 Sq. Ft.

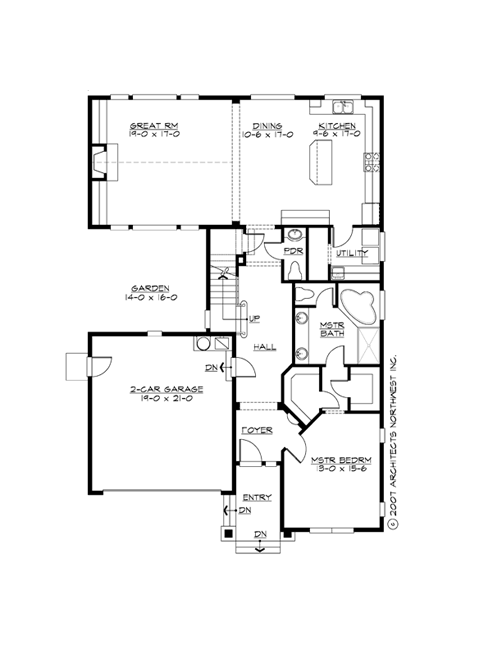

  • Main Floor:1542 Sq. Ft.

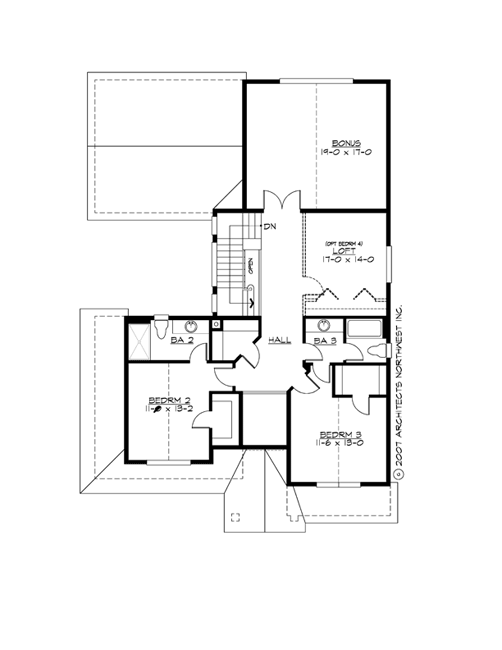

  • Upper Floor:1306 Sq. Ft.
  • Garage Floor:429 Sq. Ft.
General Information
  • Stories:2
  • Width:40'-0"
  • Depth:60'-0"
  • Height:26'-0"
Architectural Style
  • Craftsman
  • Northwest
  • Shingle
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:10:12
  • Secondary:12:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Main Floor Front
  • Craftsman House Plans
  • Northwest Floor Plans
  • Shingle House Plans
  • Narrow Lot House Plans
  • Small House Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
