Plan Pricing

$0

BRENNAN LANE

M3202A3F-0
  • Total Area:3202 Sq. Ft.
  • Garage Area:641 Sq Ft
  • Garage Size:3
  • Stories:3
  • Bedrooms:5
  • Full Baths:3
  • Half Baths:1
  • Width:50'-0"
  • Depth:40'-0"
  • Height:32'-0"
  • Foundation:Crawl Space
PLAN DETAILS FOR THE BRENNAN LANE - PLAN M3202A3F-0
Area Summary
  • Total Area:3202 Sq. Ft.

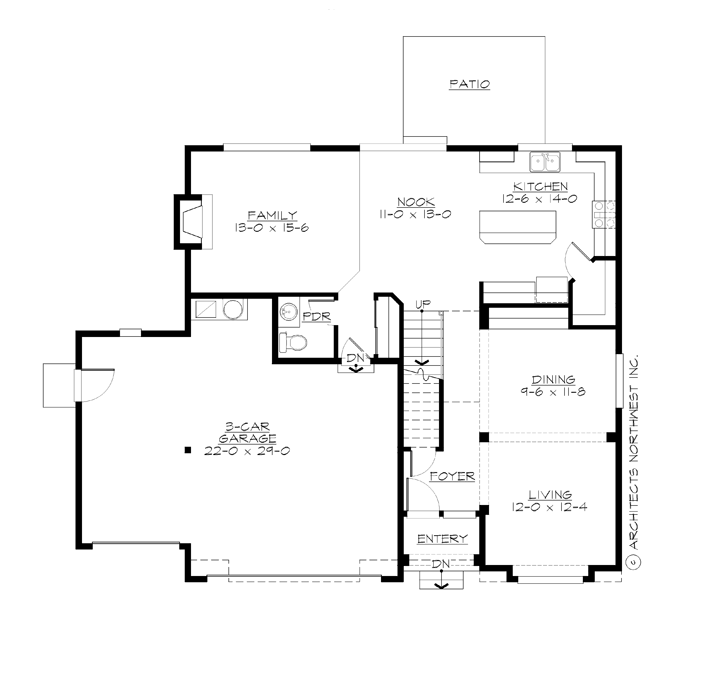

  • Main Floor:1117 Sq. Ft.

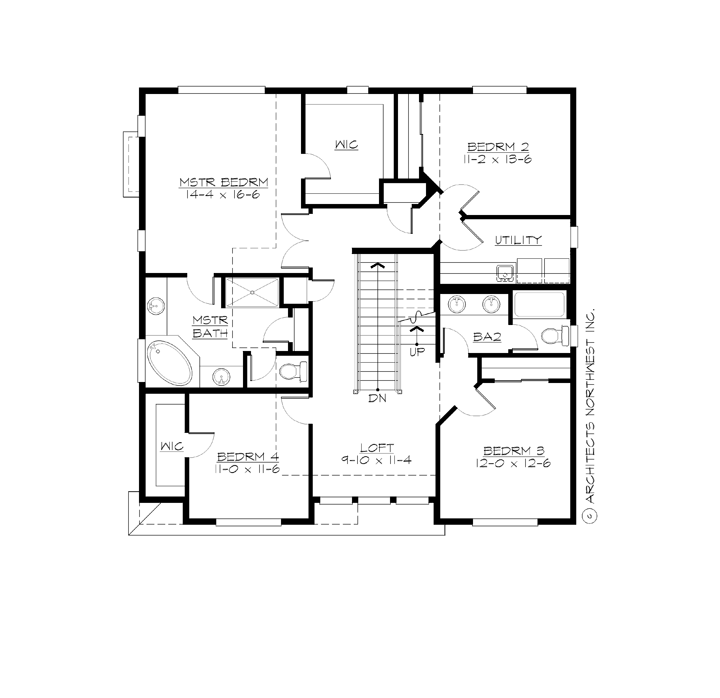

  • Upper Floor:1570 Sq. Ft.

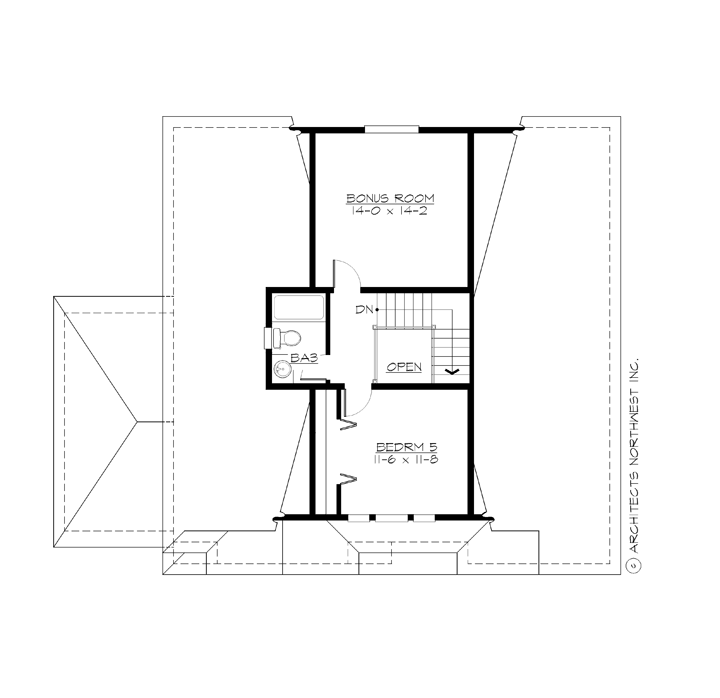

  • 3rd Floor:515 Sq. Ft.
  • Garage Floor:641 Sq. Ft.
General Information
  • Stories:3
  • Width:50'-0"
  • Depth:40'-0"
  • Height:32'-0"
Architectural Style
  • Craftsman
  • Northwest
  • Shingle
Number of Rooms
  • Bedrooms:5
  • Full Baths:3
  • Half Baths:1
Garage
  • Garage Size:3
  • Garage Door Location:Front
Roof Pitches
  • Primary:8:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
  • Third:9'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Great Room
  • Laundry Room @ & Upper Floor
  • Master Bedroom @ Upper Floor Rear
  • Craftsman House Plans
  • Northwest Floor Plans
  • Shingle House Plans
  • Narrow Lot House Plans
  • View Lot (Rear) Plans
Front Photo

Brennan

M3202A2F-0
  • Total Area:3202 Sq. Ft.
  • Stories:3
  • Bedrooms:5
  • Full Baths:3
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
