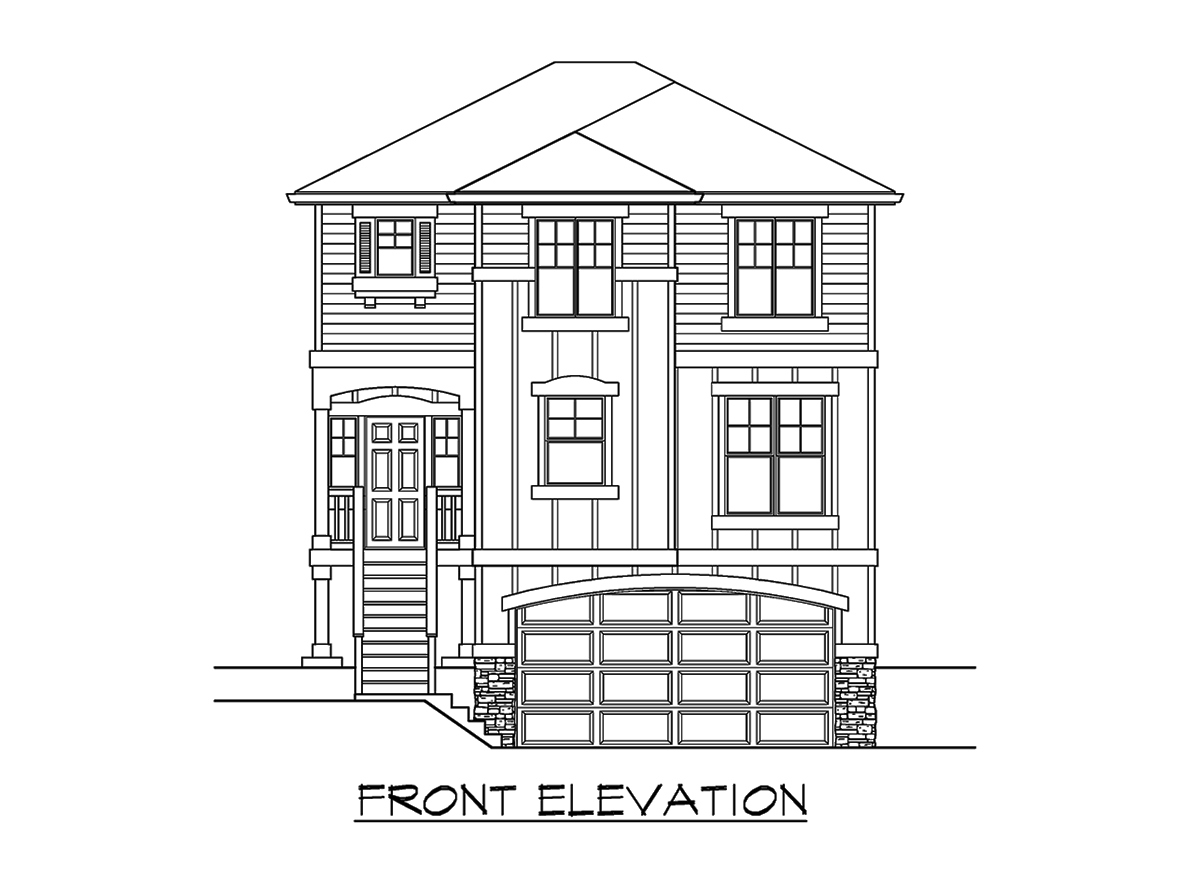

Front Elevation

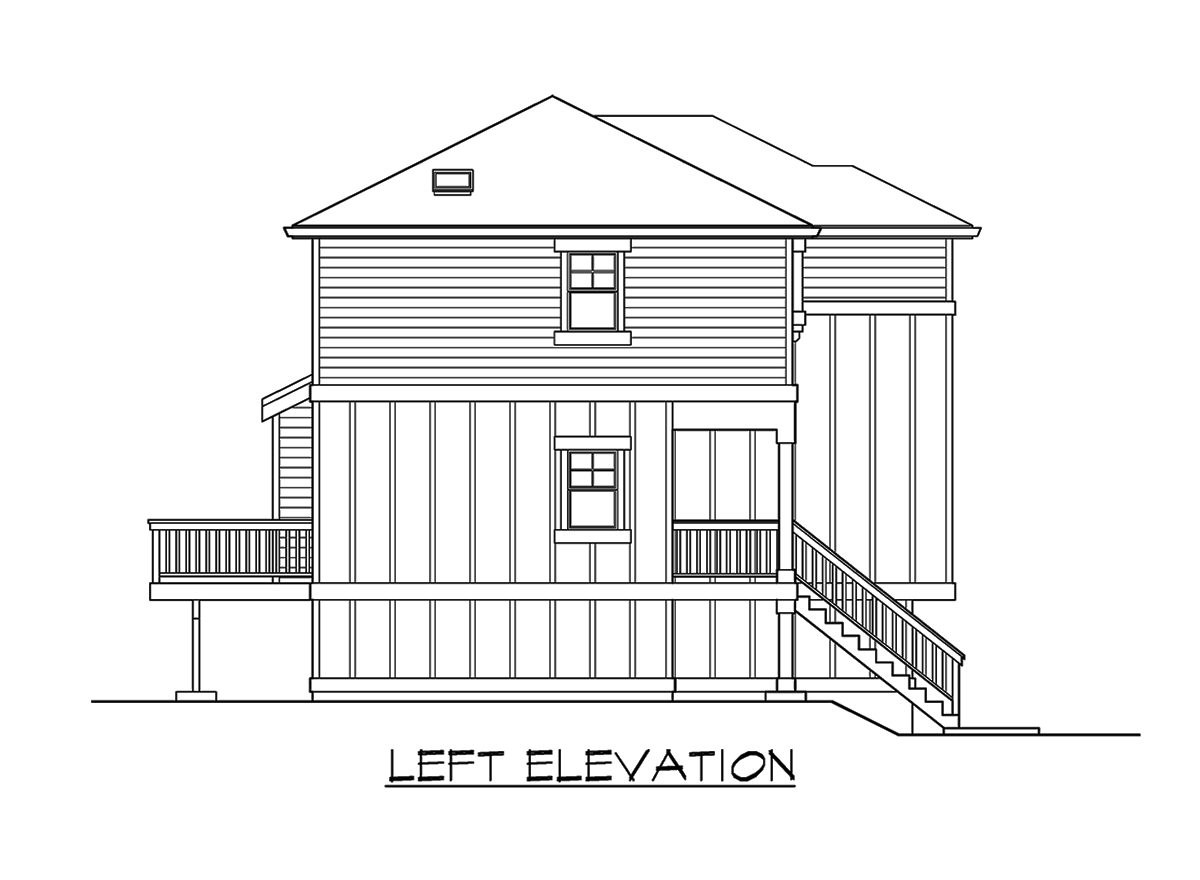

Left Elevation

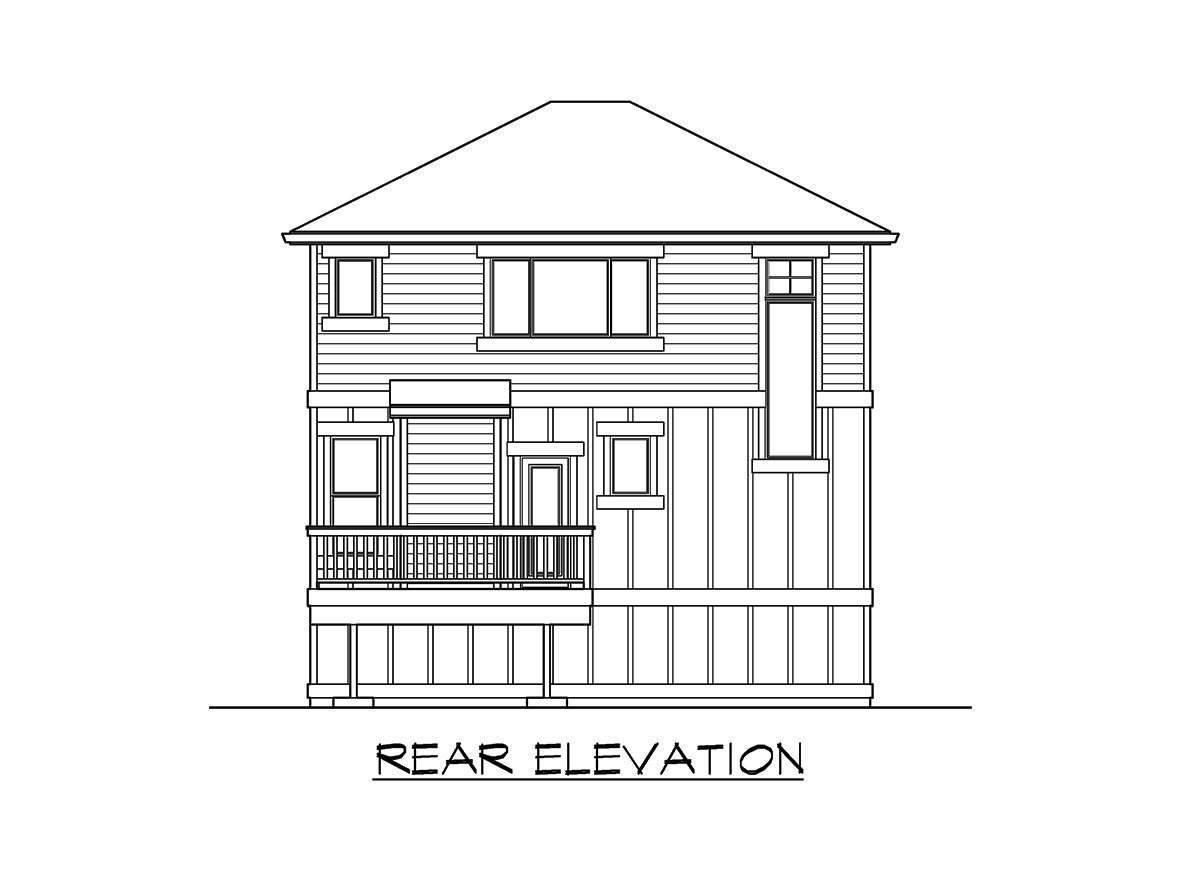

Rear Elevation

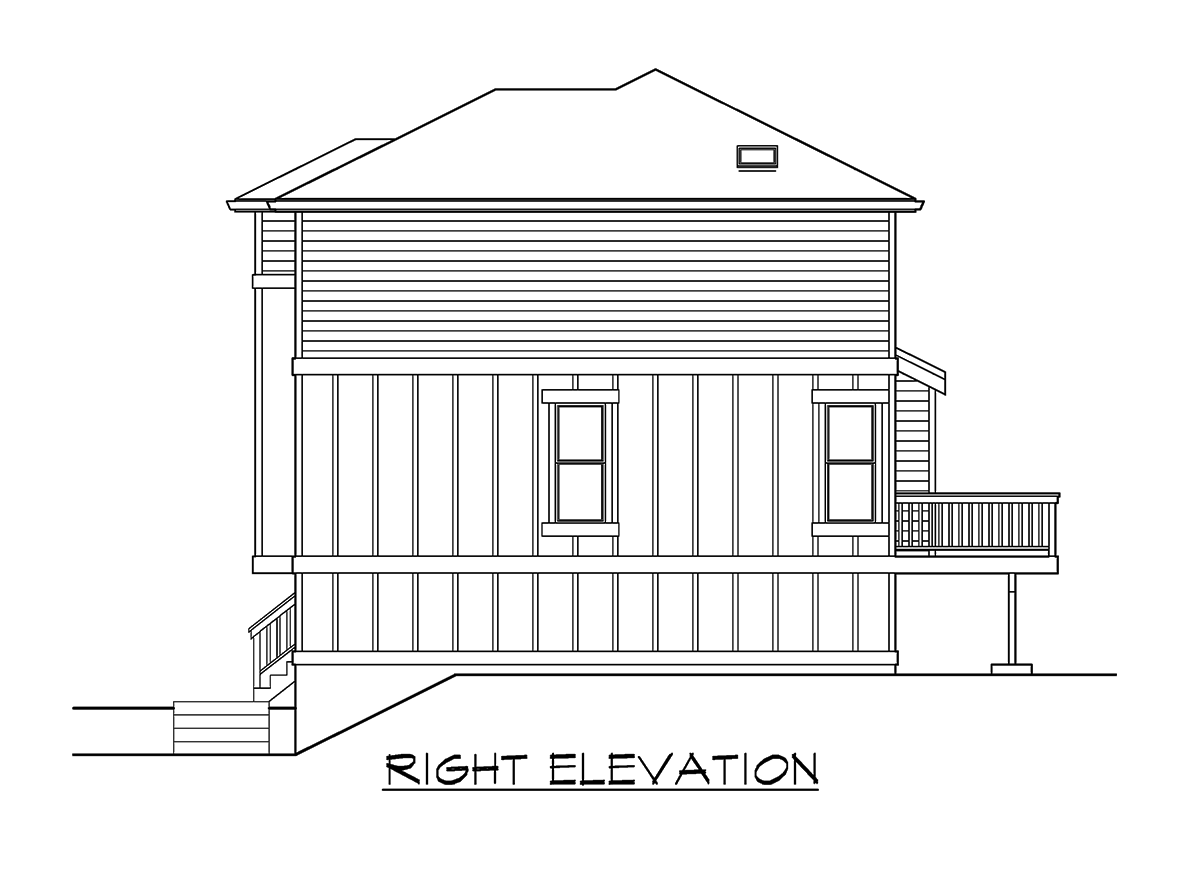

Right Elevation

Plan Pricing

$0

BROWNSVILLE

M1495A2FU-0
  • Total Area:1495 Sq. Ft.
  • Garage Area:745 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:3
  • Full Baths:2
  • Half Baths:1
  • Width:28'-0"
  • Depth:32'-0"
  • Height:24'-6"
  • Foundation:Slab
Plan Details Add to My Saved Plans Plan Modifications Similar Plans Print this plan E-mail This plan Reverse Floor Plan

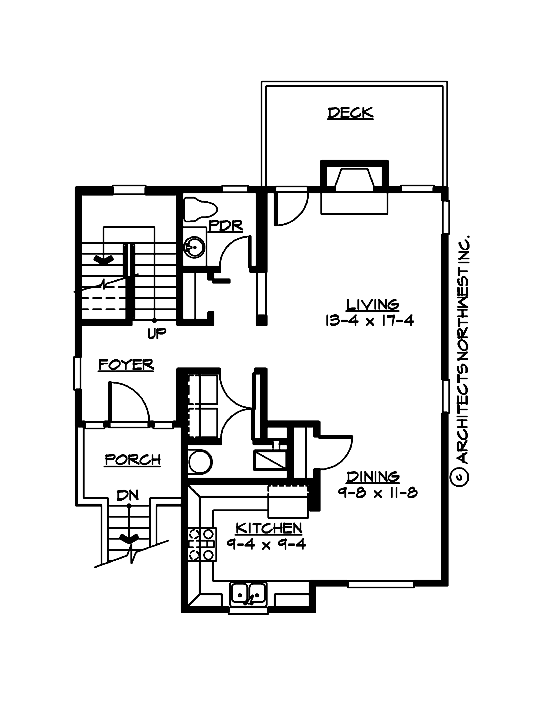

M1495A2FU-0 Brownsville Main Floor
Main Floor

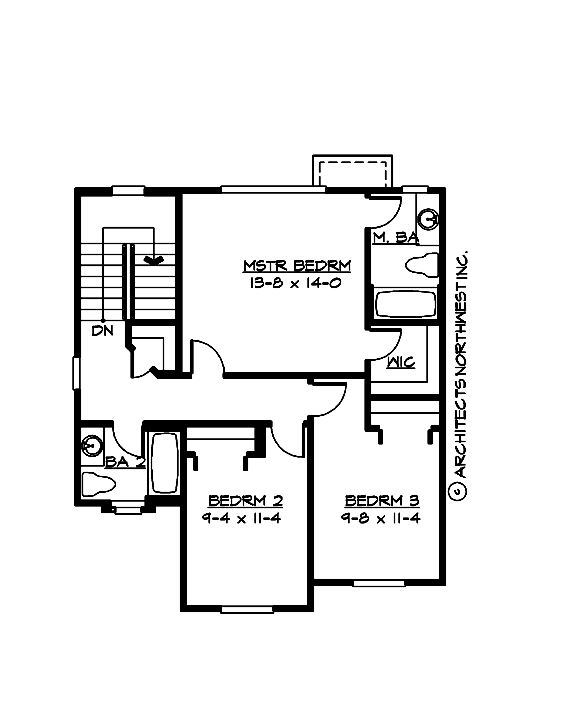

M1495A2FU-0 Brownsville Upper Floor
Upper Floor

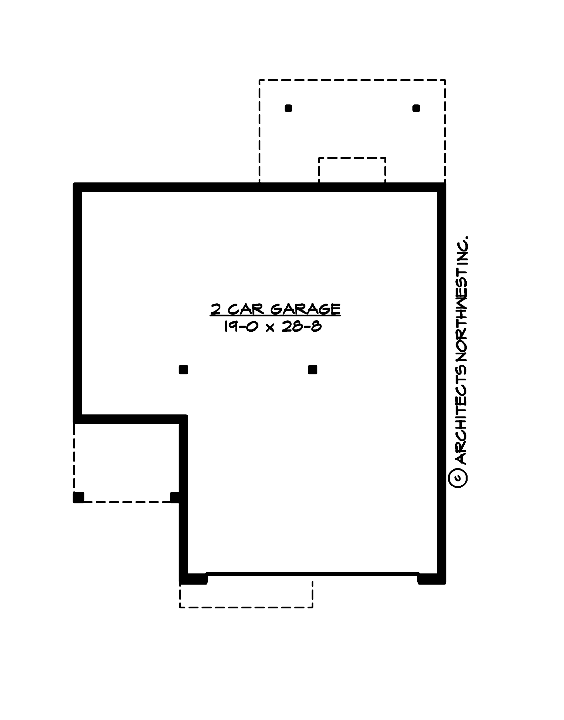

M1495A2FU-0 Brownsville Lower Floor
Lower Floor
PLAN DETAILS FOR THE BROWNSVILLE - PLAN M1495A2FU-0
Area Summary
  • Total Area:1495 Sq. Ft.
  • Main Floor:762 Sq. Ft.
  • Upper Floor:733 Sq. Ft.
  • Garage Floor:745 Sq. Ft.
General Information
  • Stories:2
  • Width:28'-0"
  • Depth:32'-0"
  • Height:24'-6"
Architectural Style
  • Craftsman
  • Northwest
  • Traditional
Number of Rooms
  • Bedrooms:3
  • Full Baths:2
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:6:12
Wall Heights
  • Main:9'-0"
  • Upper:8'-0"
  • Lower:9'-0"
Foundation Type
  • Slab On Grade
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Upper Floor Rear
  • Craftsman House Plans
  • Northwest Floor Plans
  • Traditional House Plans
