Plan Pricing

$0

GILROY

M3726A2F-0DB
  • Total Area:3714 Sq. Ft.
  • Garage Area:406 Sq Ft
  • Garage Size:2
  • Stories:3
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
  • Width:45'-0"
  • Depth:48'-4"
  • Height:26'-0"
  • Foundation:Basement
PLAN DETAILS FOR THE GILROY - PLAN M3726A2F-0DB
Area Summary
  • Total Area:3714 Sq. Ft.

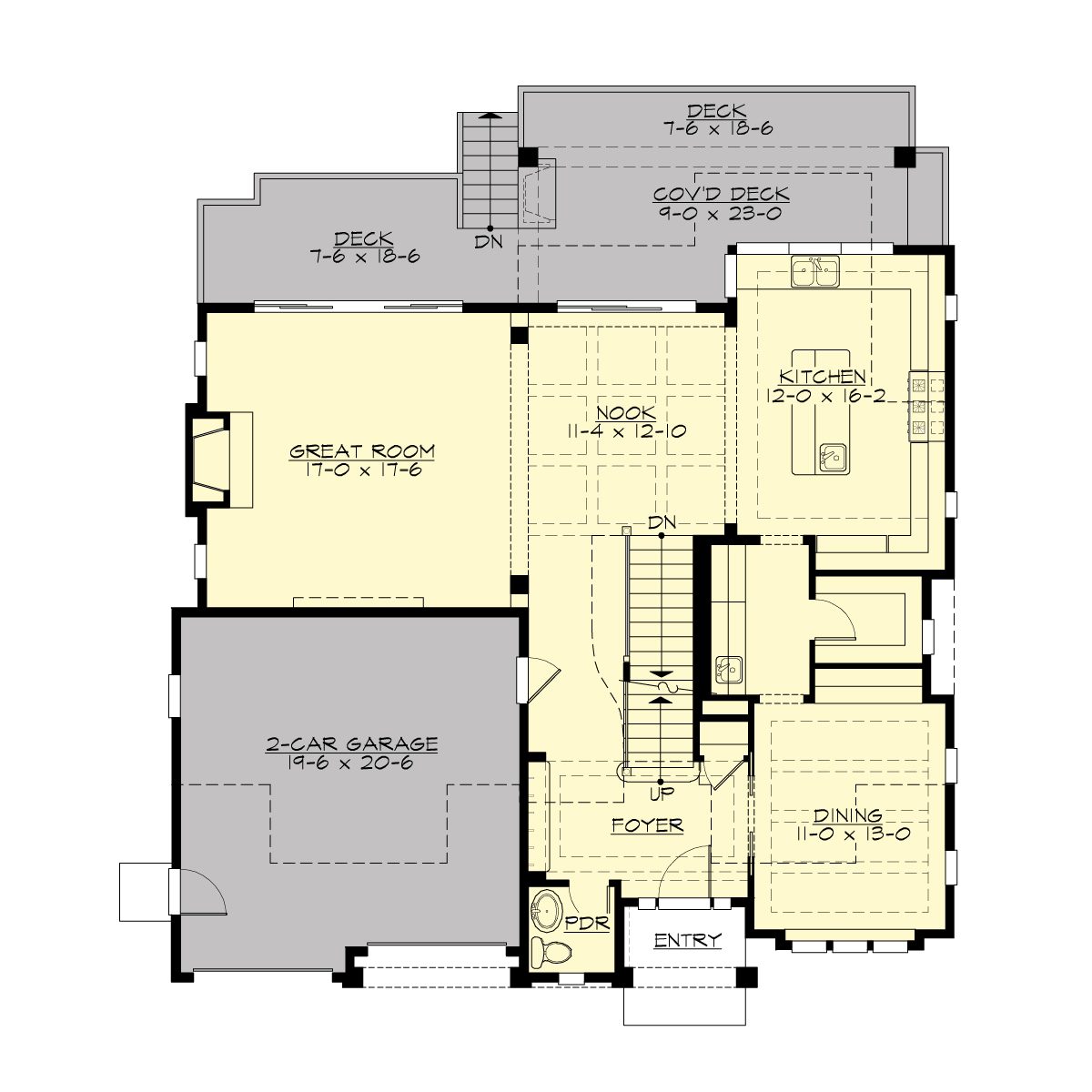

  • Main Floor:1284 Sq. Ft.

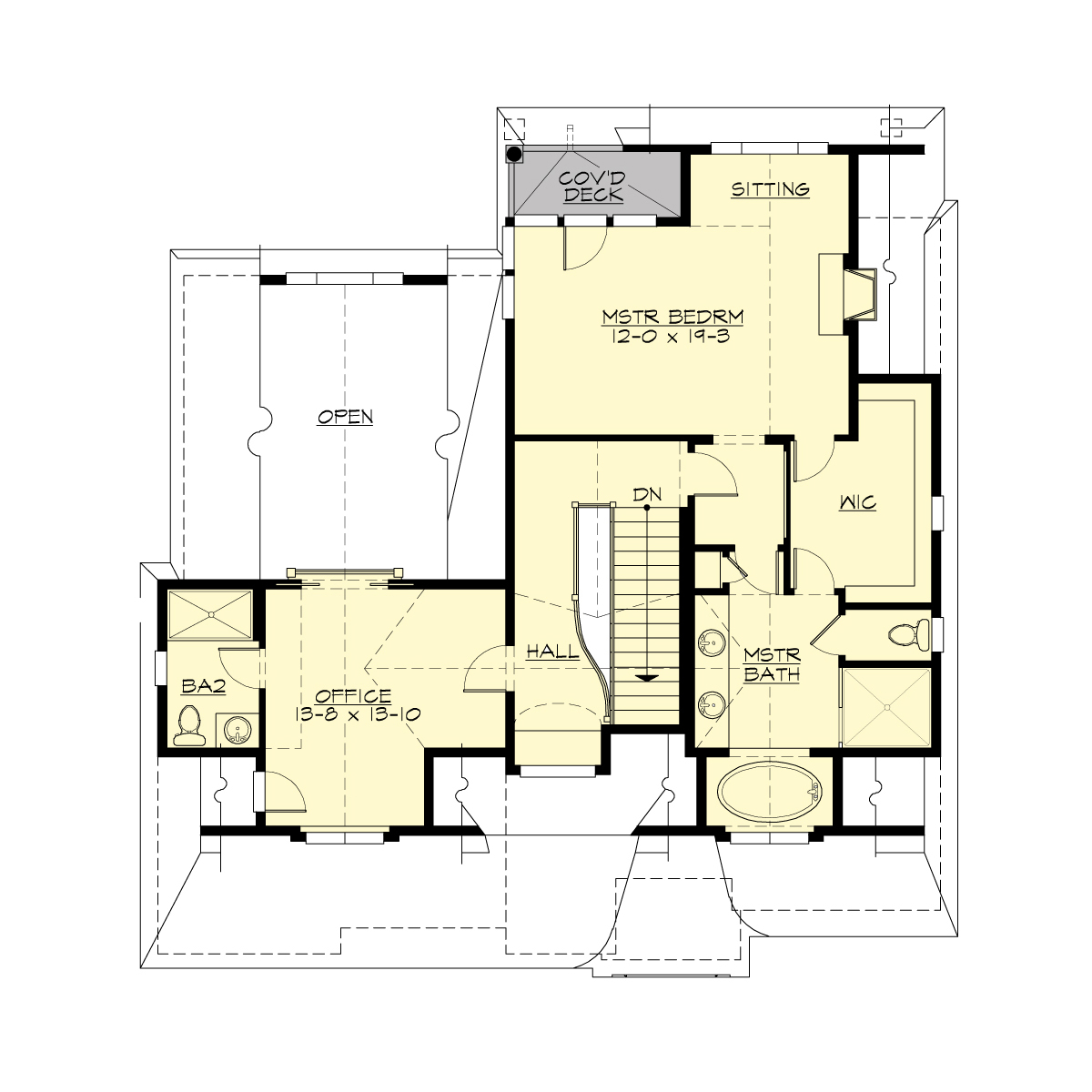

  • Upper Floor:987 Sq. Ft.
  • Lower Floor:1443 Sq. Ft.
  • Garage Floor:406 Sq. Ft.
General Information
  • Stories:3
  • Width:45'-0"
  • Depth:48'-4"
  • Height:26'-0"
Architectural Style
  • Bungalow
  • Cottage
  • Shingle
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:12:12
  • Secondary:18:12
Wall Heights
  • Main:10'-0"
  • Upper:7'-0"
  • Lower:9'-0"
Foundation Type
  • Daylight Basement
Roof Framing
  • Stick
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Lower Floor
  • Den/Office
  • Rear Porch
  • Great Room
  • Laundry Room @ & Lower Floor
  • Master Bedroom @ Upper Floor Rear
  • Bungalow House Plans
  • Cottage House Plans
  • Shingle House Plans
  • Narrow Lot House Plans
  • View Lot (Rear) Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
