Plan Pricing

$0

KENYON CREEK

M1528B2F-0
  • Total Area:1528 Sq. Ft.
  • Garage Area:418 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:3
  • Full Baths:2
  • Half Baths:1
  • Width:30'-0"
  • Depth:50'-0"
  • Height:22'-0"
  • Foundation:Crawl Space
PLAN DETAILS FOR THE KENYON CREEK - PLAN M1528B2F-0
Area Summary
  • Total Area:1528 Sq. Ft.

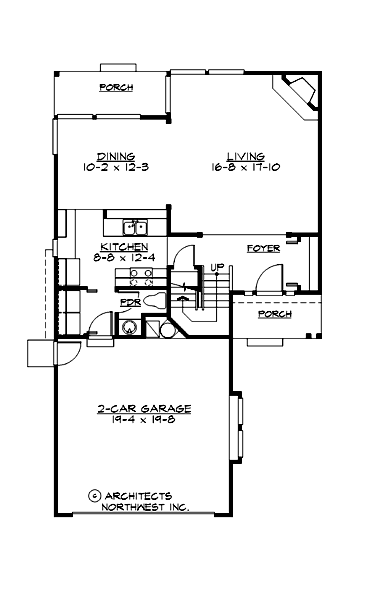

  • Main Floor:766 Sq. Ft.

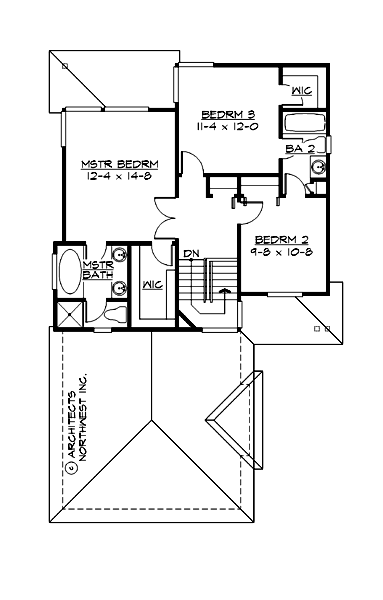

  • Upper Floor:752 Sq. Ft.
  • Garage Floor:418 Sq. Ft.
General Information
  • Stories:2
  • Width:30'-0"
  • Depth:50'-0"
  • Height:22'-0"
Architectural Style
  • Craftsman
  • Farmhouse
  • Northwest
Number of Rooms
  • Bedrooms:3
  • Full Baths:2
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:5:12
Wall Heights
  • Main:8'-0"
  • Upper:8'-0"
Foundation Type
  • Crawl Space
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Front and Rear Porch
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Upper Floor Rear
  • Craftsman House Plans
  • Farmhouse Home Plans
  • Northwest Floor Plans
  • Narrow Lot House Plans
  • Small House Plans
Front Rendering

Kenyon Point

M1528A2F-0
  • Total Area:1528 Sq. Ft.
  • Stories:2
  • Bedrooms:3
  • Full Baths:2
Front Photo

Kenyon

M1528A2S-0
  • Total Area:1528 Sq. Ft.
  • Stories:2
  • Bedrooms:3
  • Full Baths:2
Front Photo

Kenyon Park

M1528B2S-0
  • Total Area:1528 Sq. Ft.
  • Stories:2
  • Bedrooms:3
  • Full Baths:2
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
