Plan Pricing

$0

MONDAVIO

M4858B3S-1DB
  • Total Area:4858 Sq. Ft.
  • Garage Area:734 Sq Ft
  • Garage Size:3
  • Stories:3
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
  • Width:56'-6"
  • Depth:74'-0"
  • Height:26'-0"
  • Foundation:Basement
PLAN DETAILS FOR THE MONDAVIO - PLAN M4858B3S-1DB
Area Summary
  • Total Area:4858 Sq. Ft.

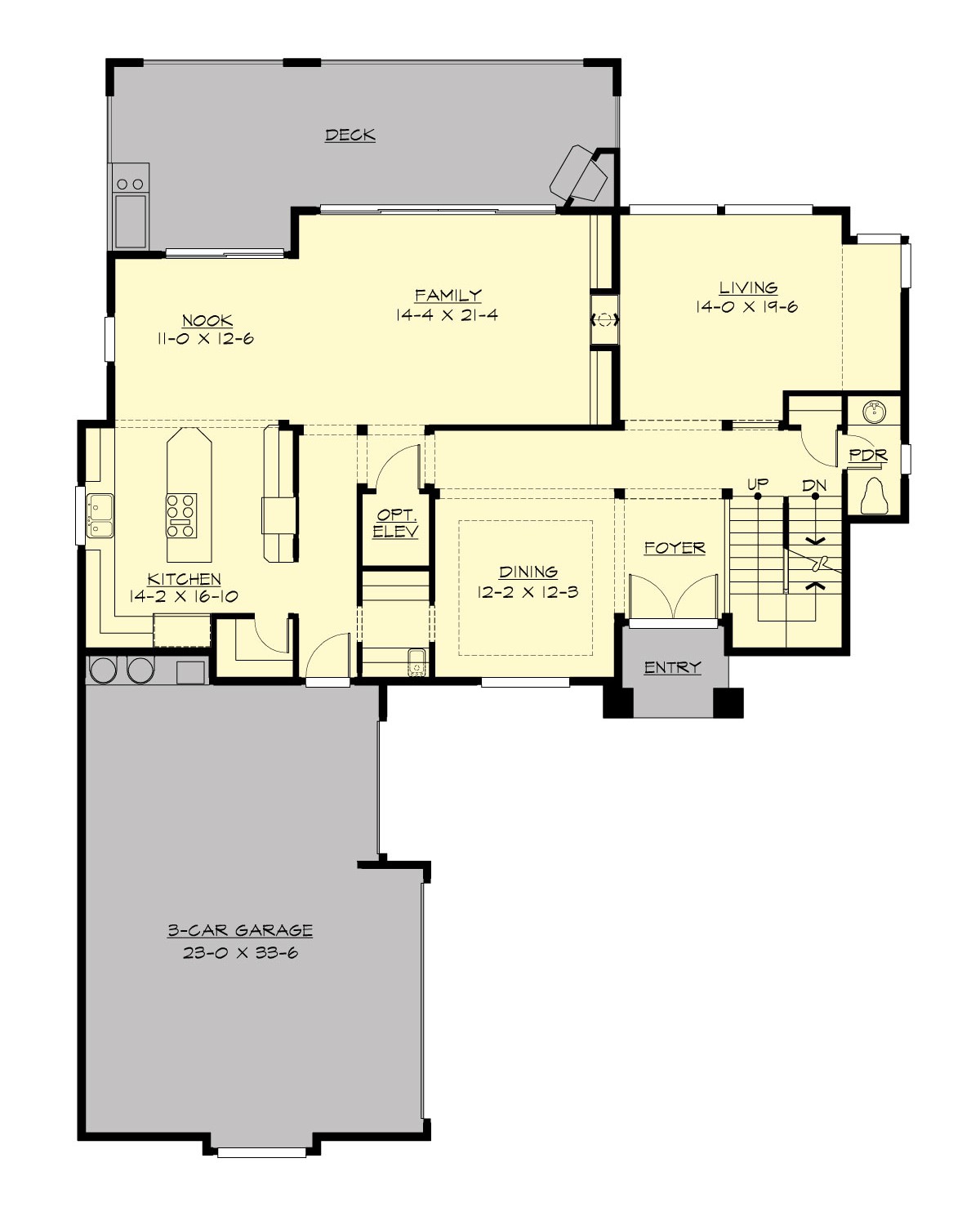

  • Main Floor:1655 Sq. Ft.
  • Upper Floor:1501 Sq. Ft.

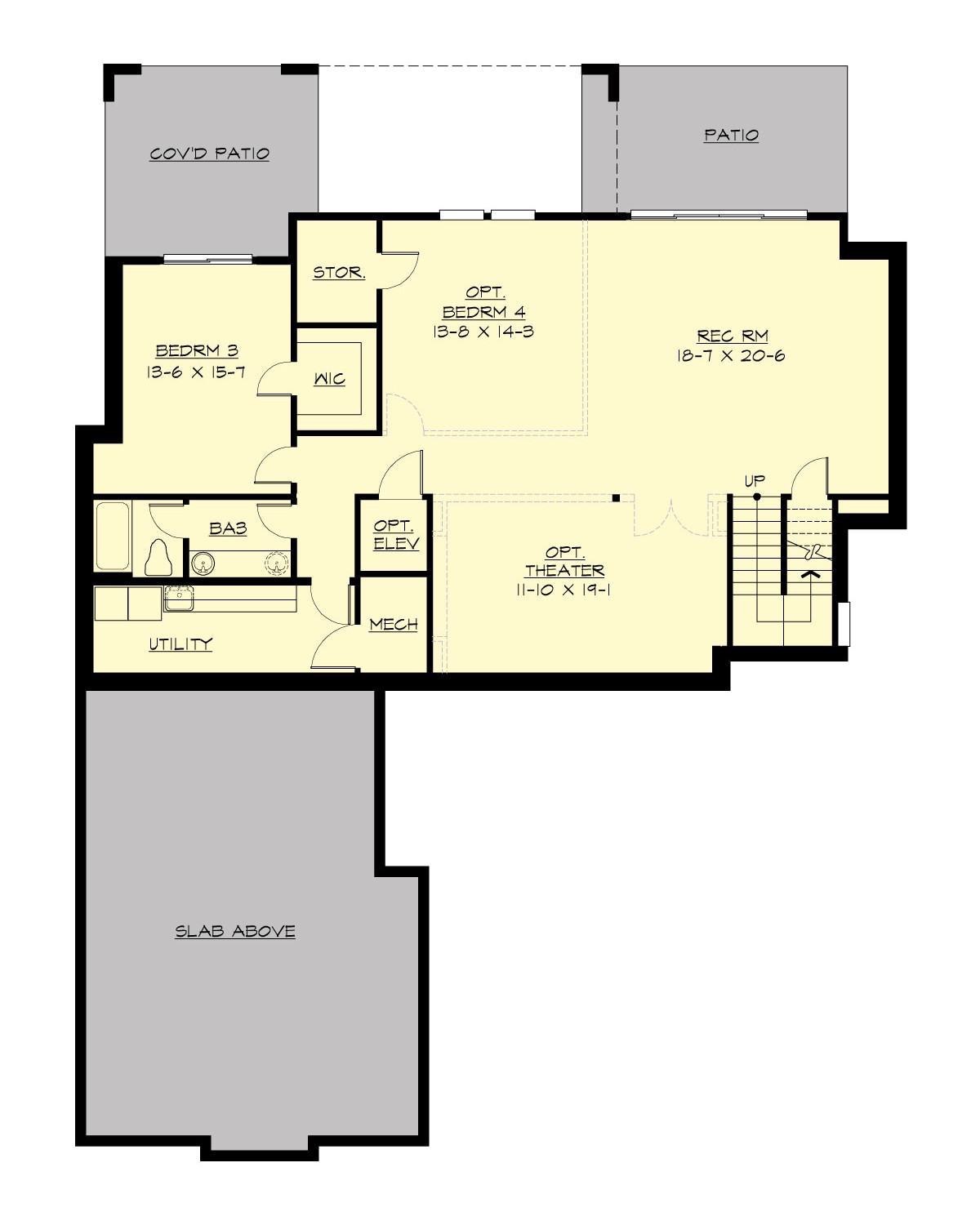

  • Lower Floor:1702 Sq. Ft.
  • Garage Floor:734 Sq. Ft.
General Information
  • Stories:3
  • Width:56'-6"
  • Depth:74'-0"
  • Height:26'-0"
Architectural Style
  • Craftsman
  • Northwest
  • Shingle
Number of Rooms
  • Bedrooms:4
  • Full Baths:3
  • Half Baths:1
Garage
  • Garage Size:3
  • Garage Door Location:Side
Roof Pitches
  • Primary:4:12
  • Secondary:3:12
Wall Heights
  • Main:10'-0"
  • Upper:9'-0"
  • Lower:10'-0"
Foundation Type
  • Daylight Basement
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features

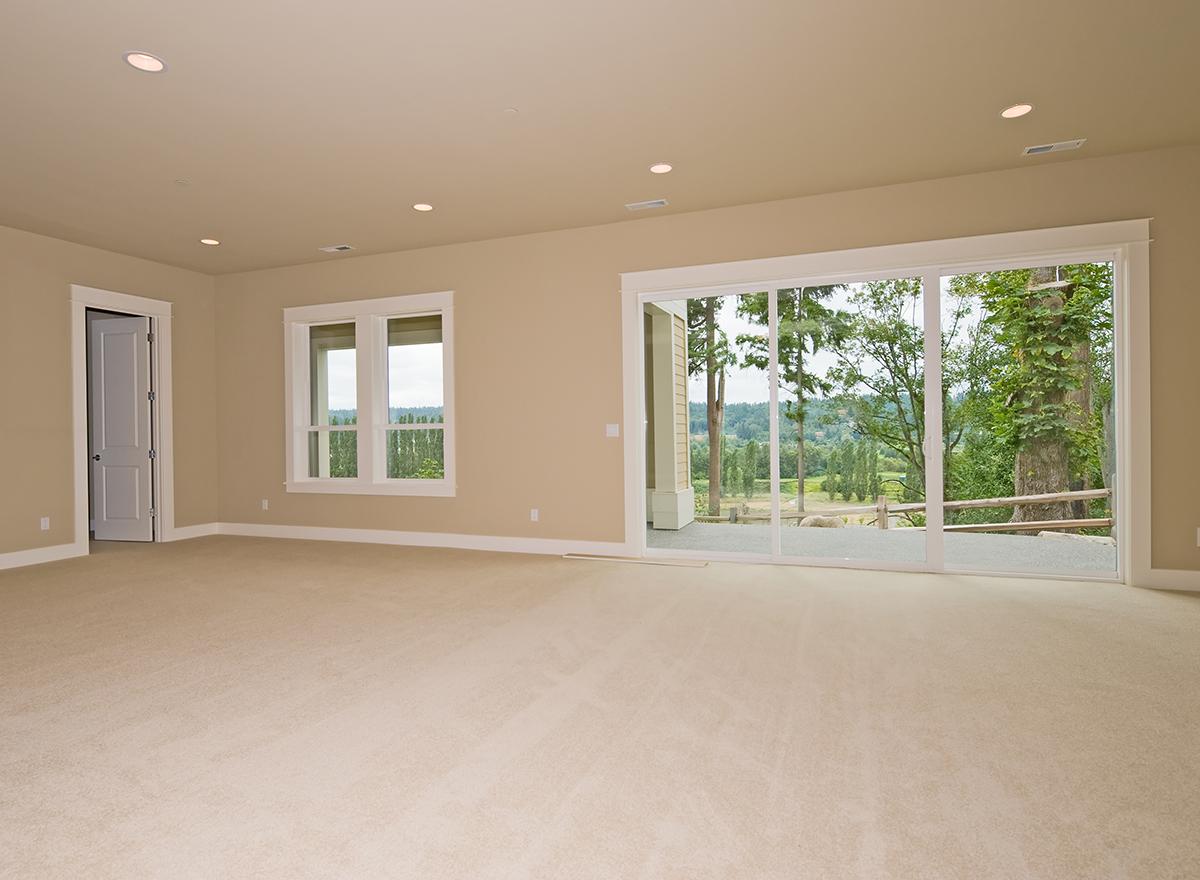

  • Bonus Space @ , Upper & Lower Floor

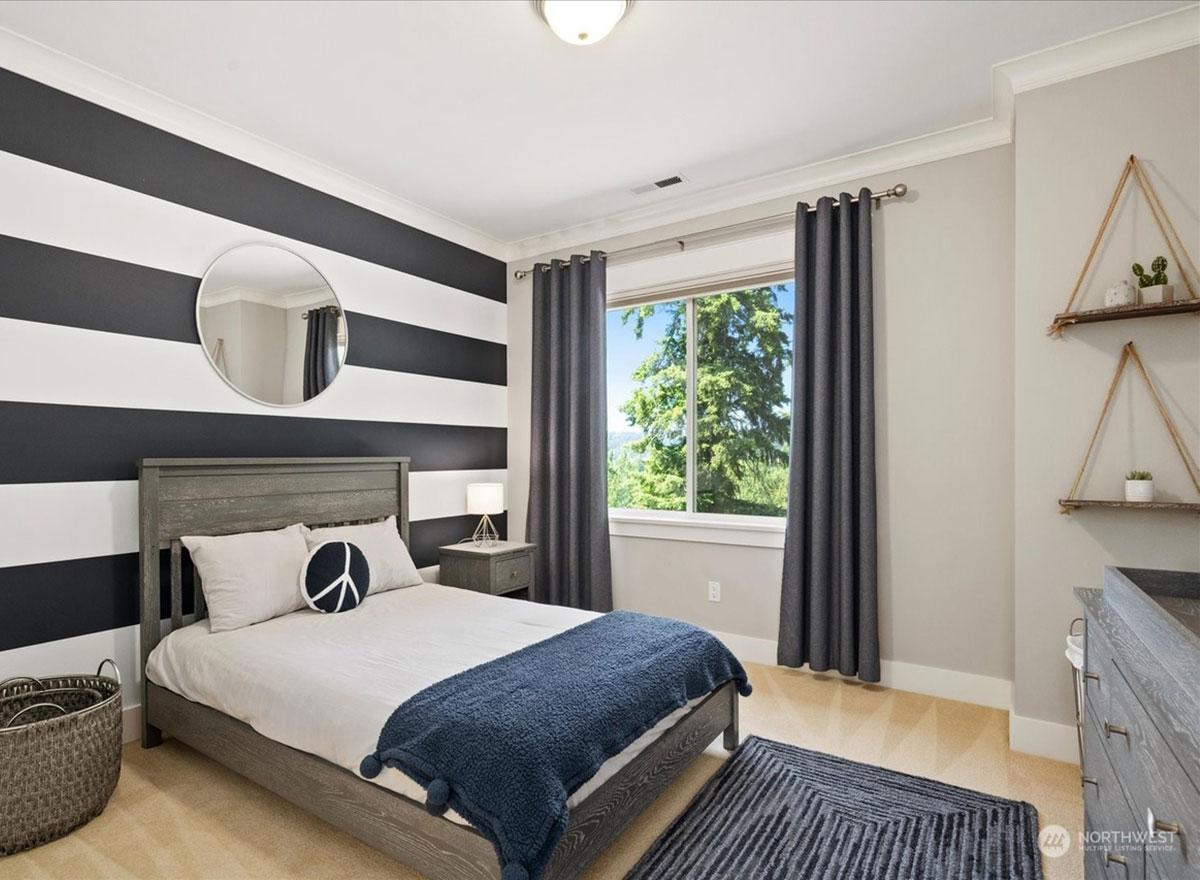

  • Den/Office

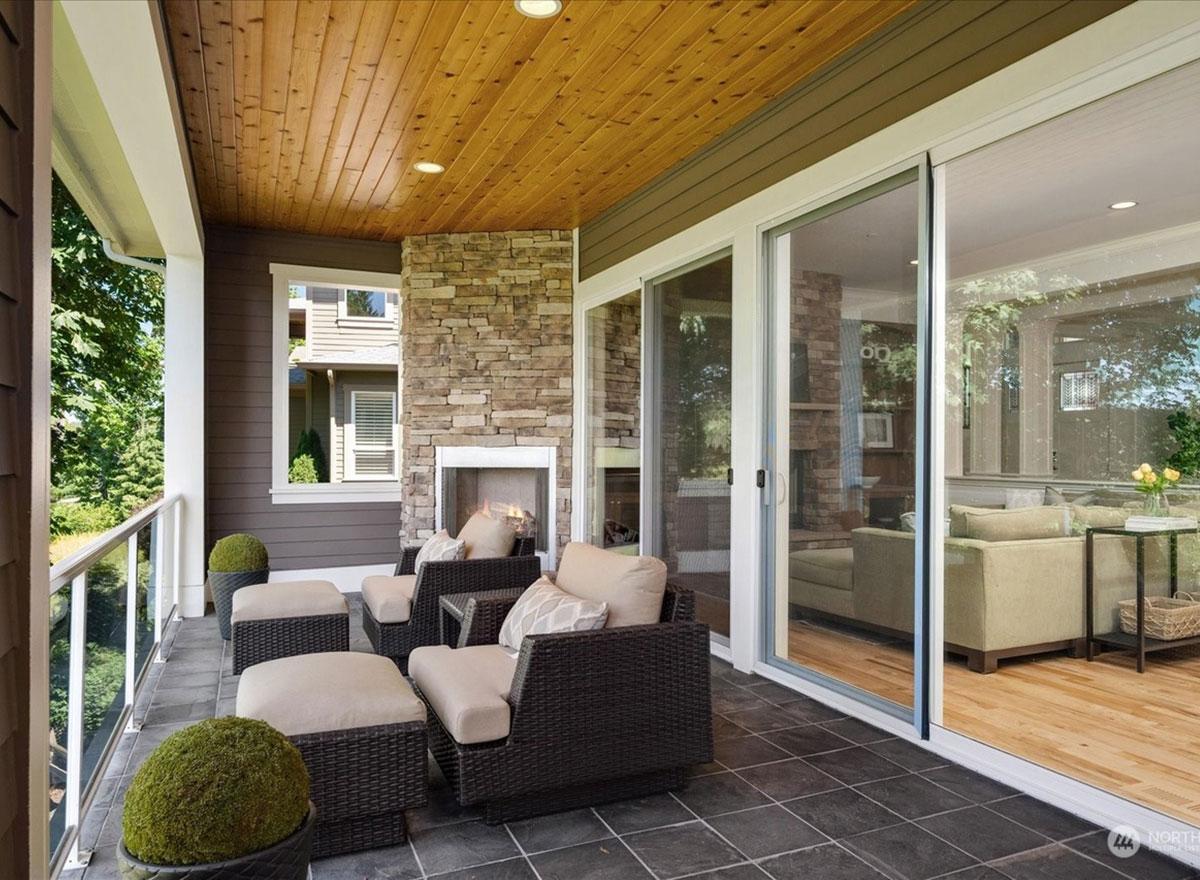

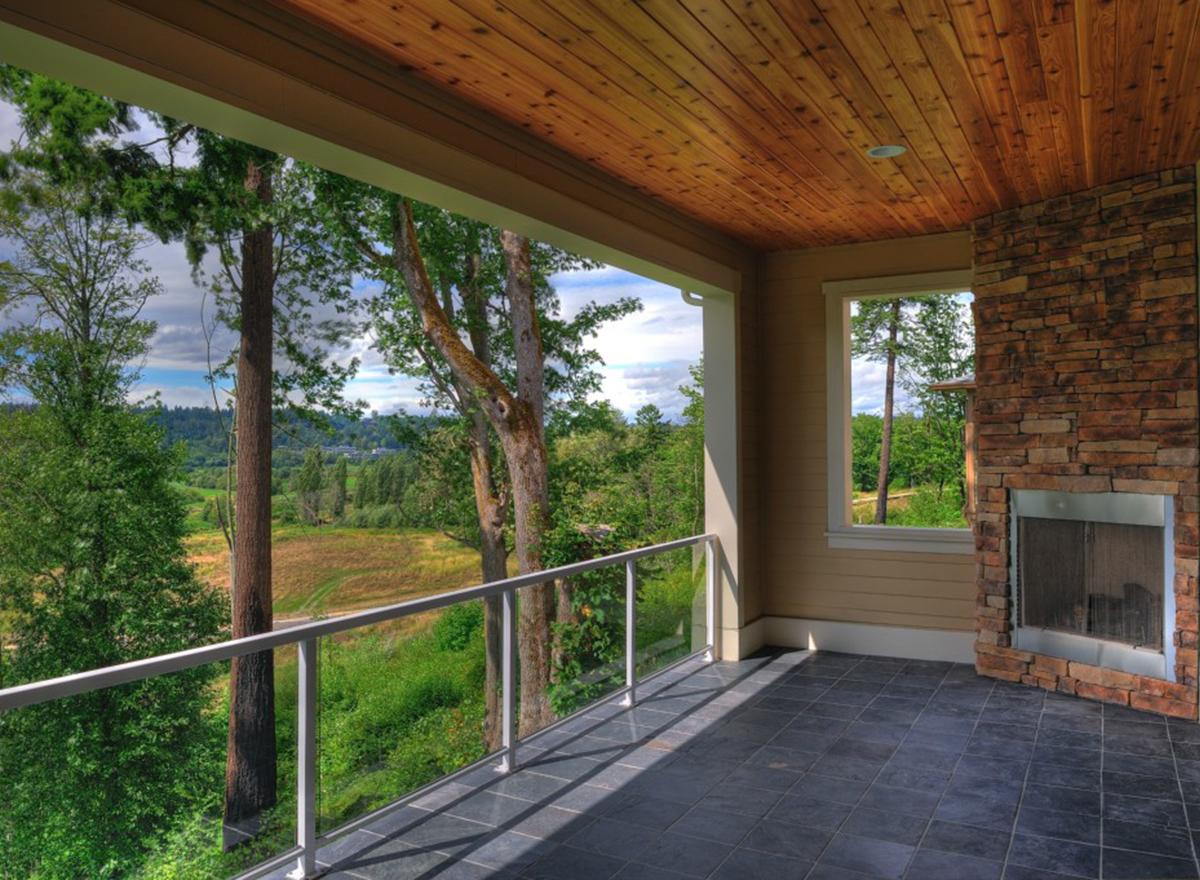

  • Front and Rear Porch

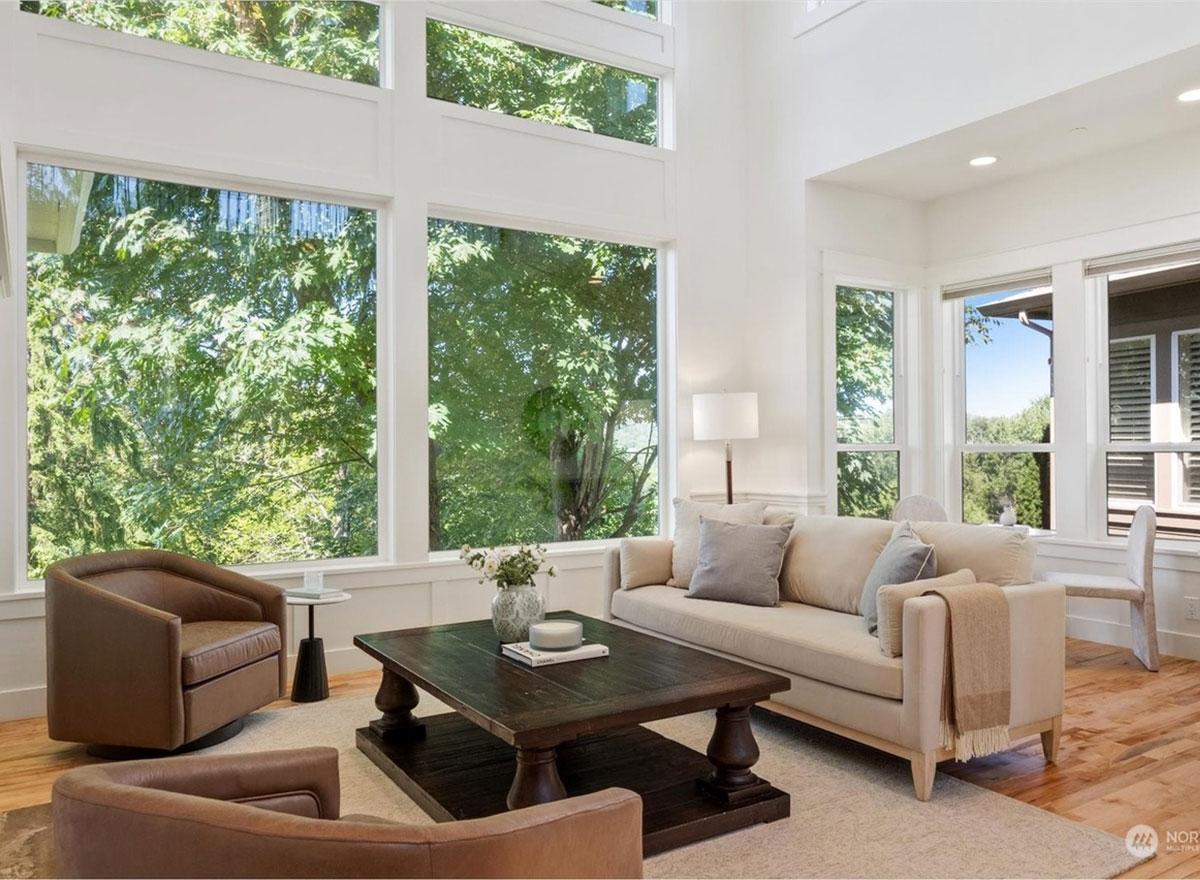

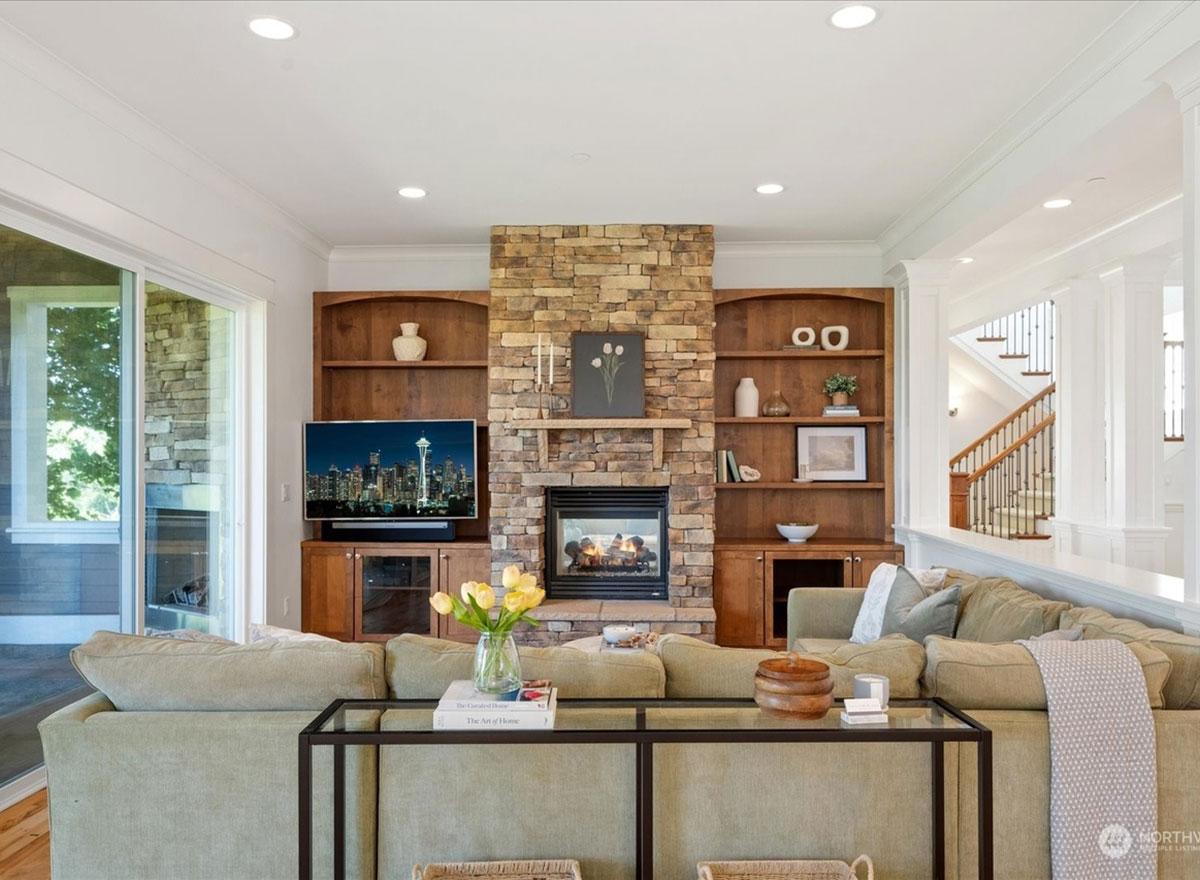

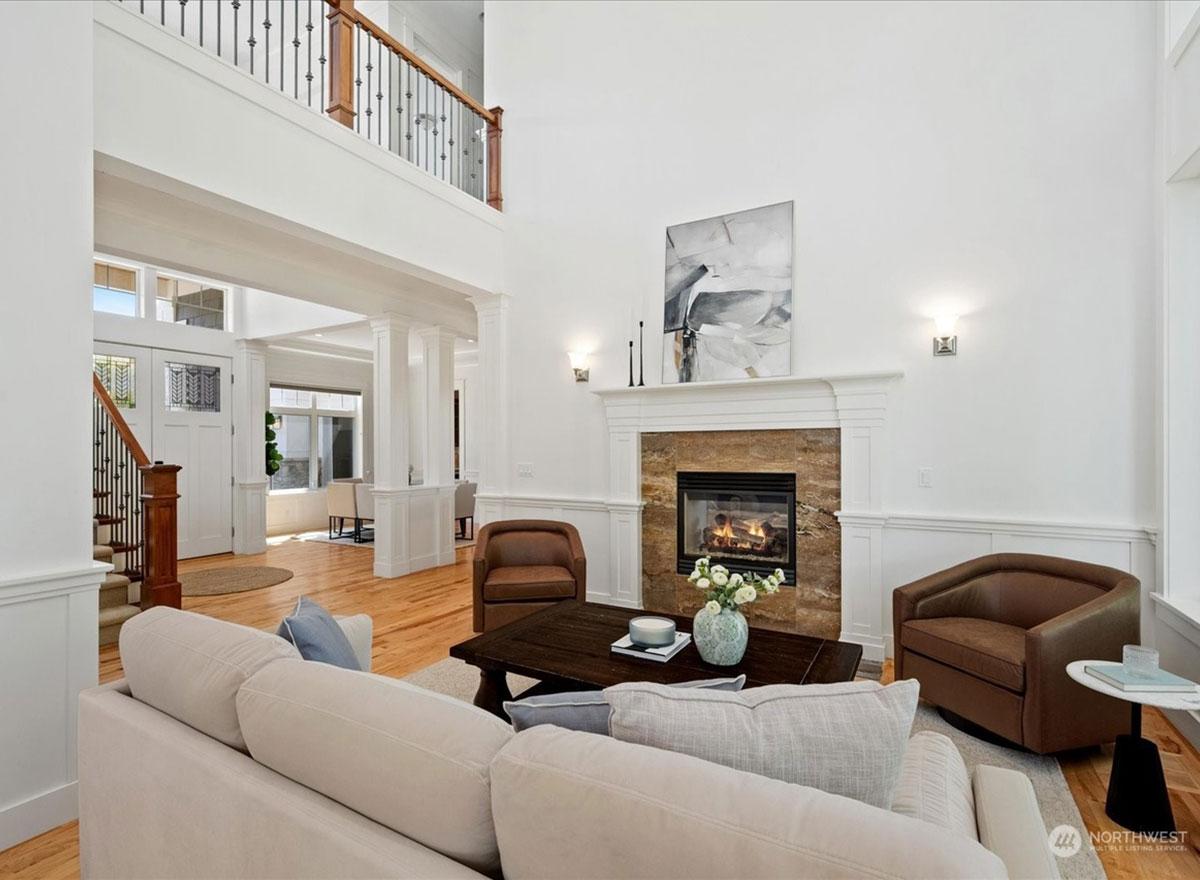

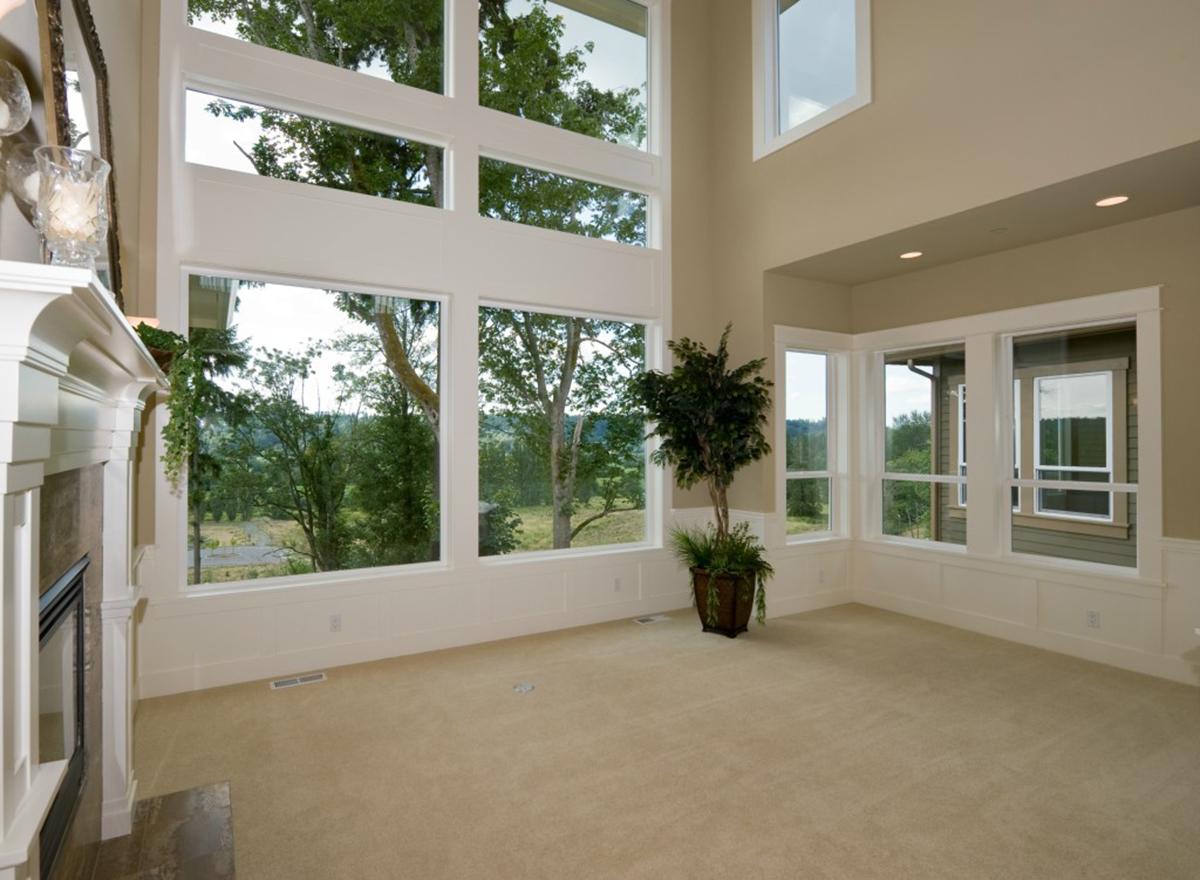

  • Great Room

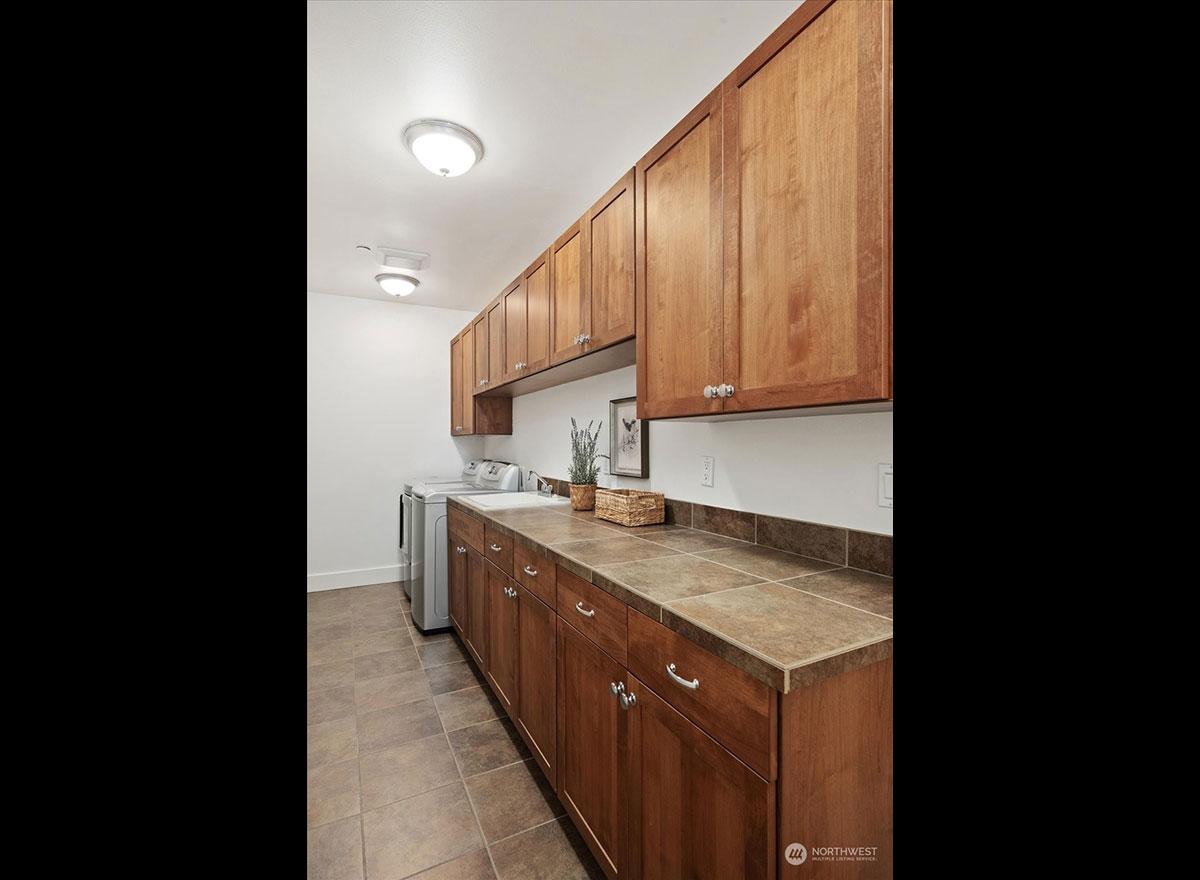

  • Laundry Room @ & Lower Floor

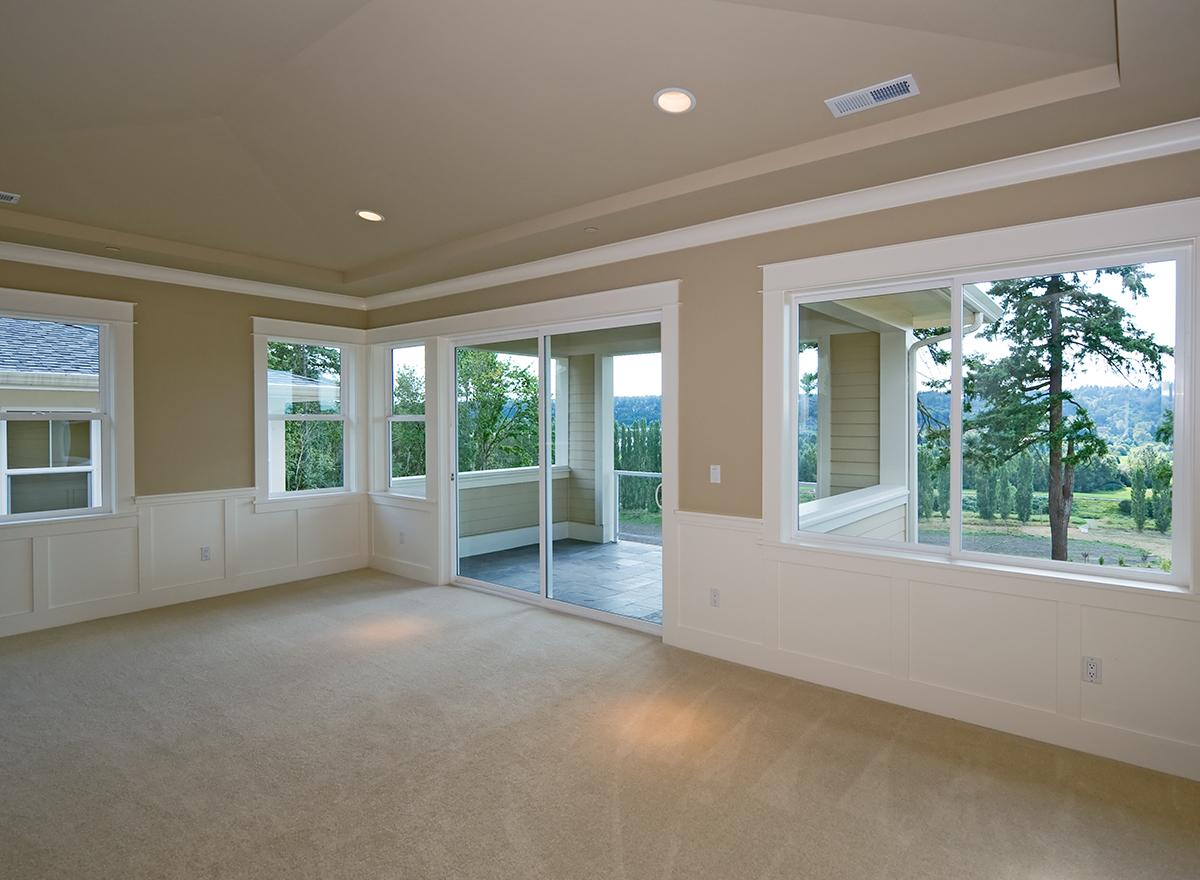

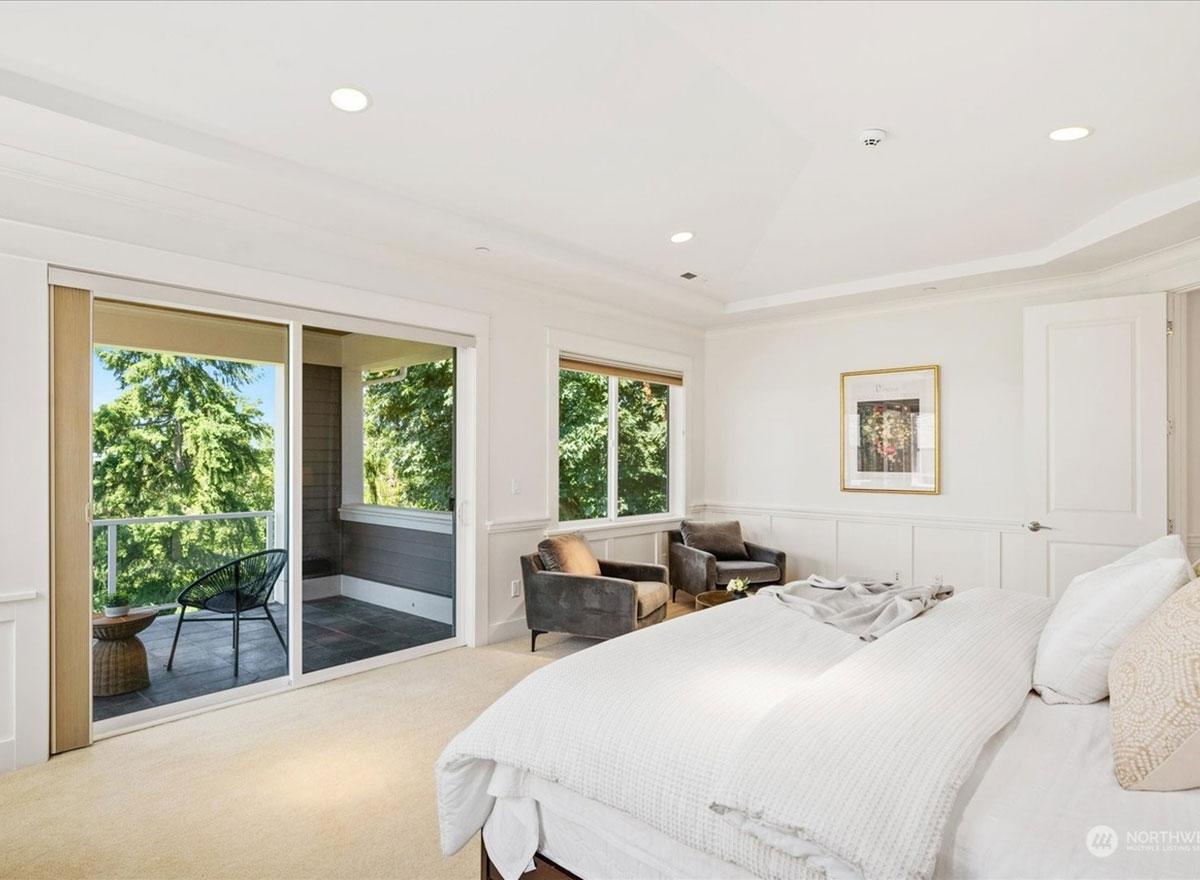

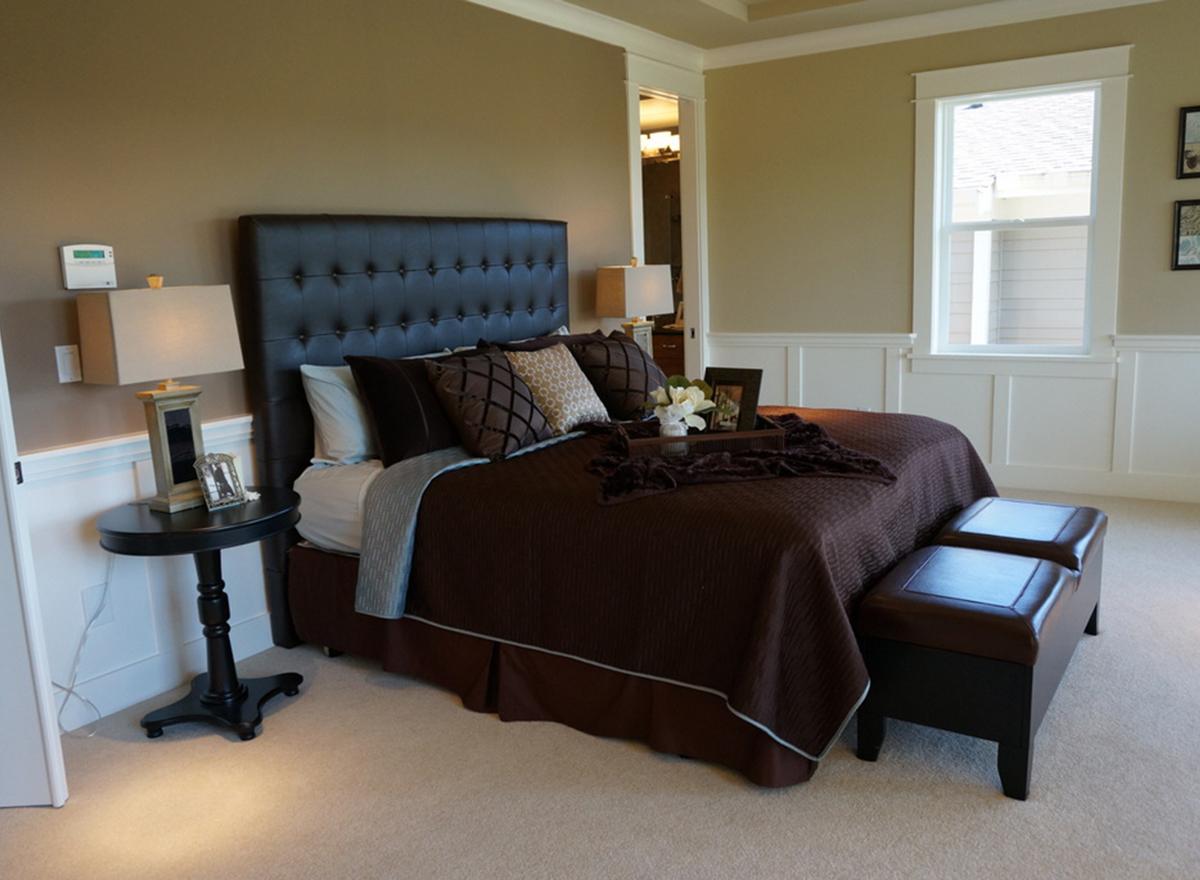

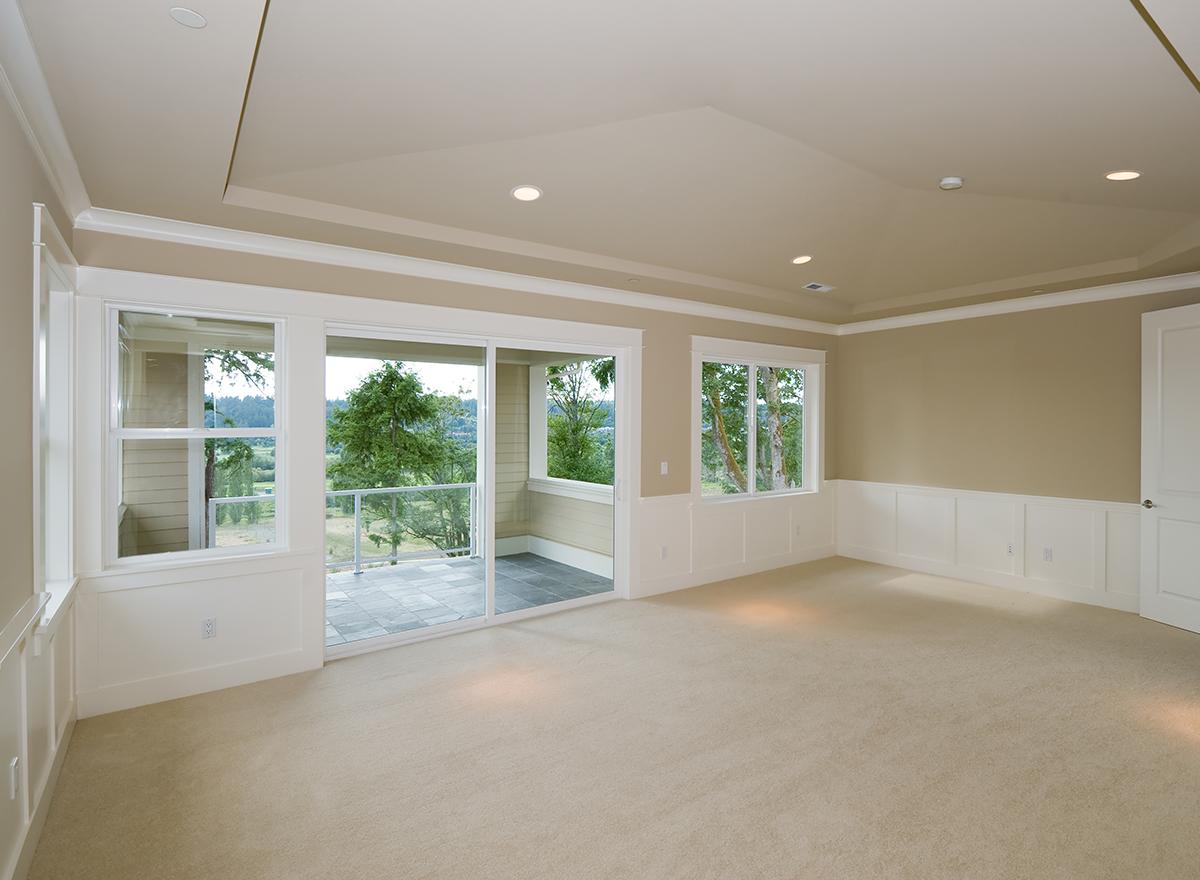

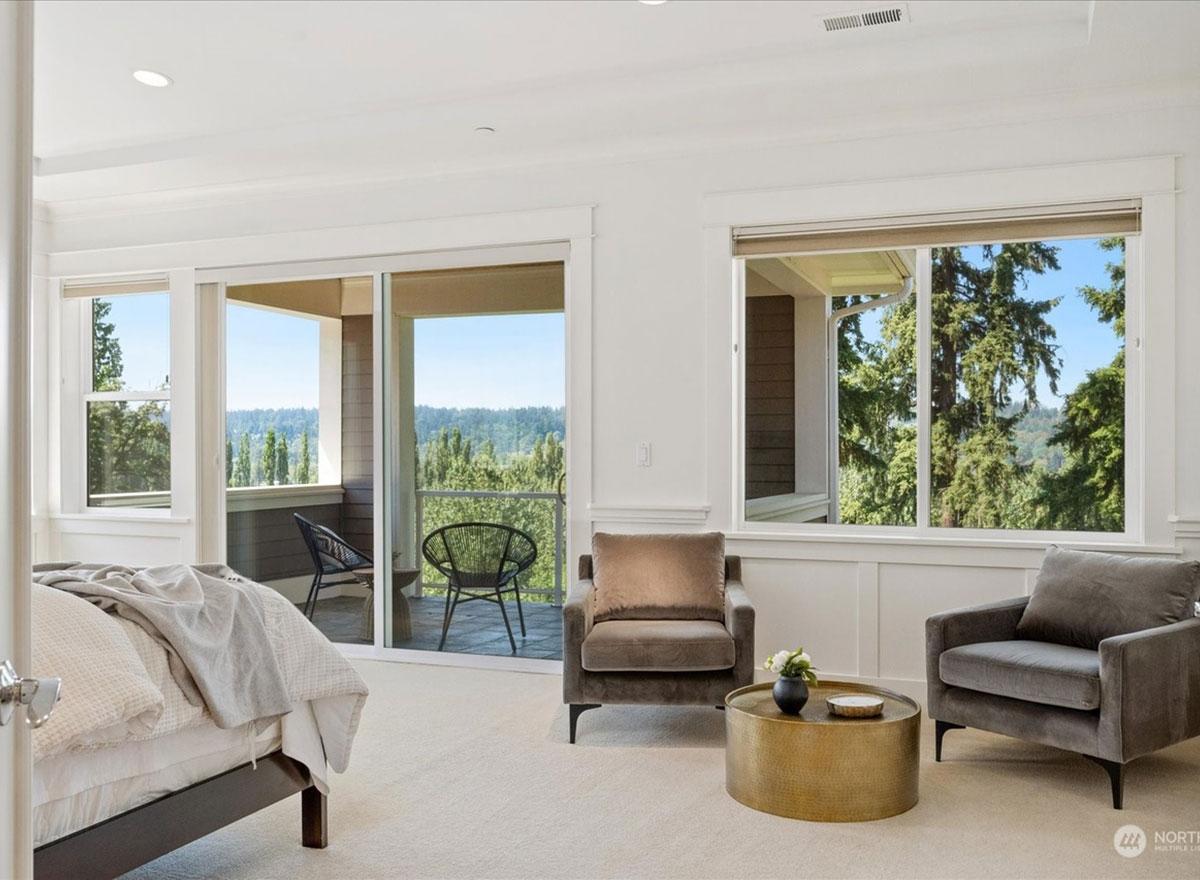

  • Master Bedroom @ Upper Floor Rear
  • Craftsman House Plans
  • Northwest Floor Plans
  • Shingle House Plans

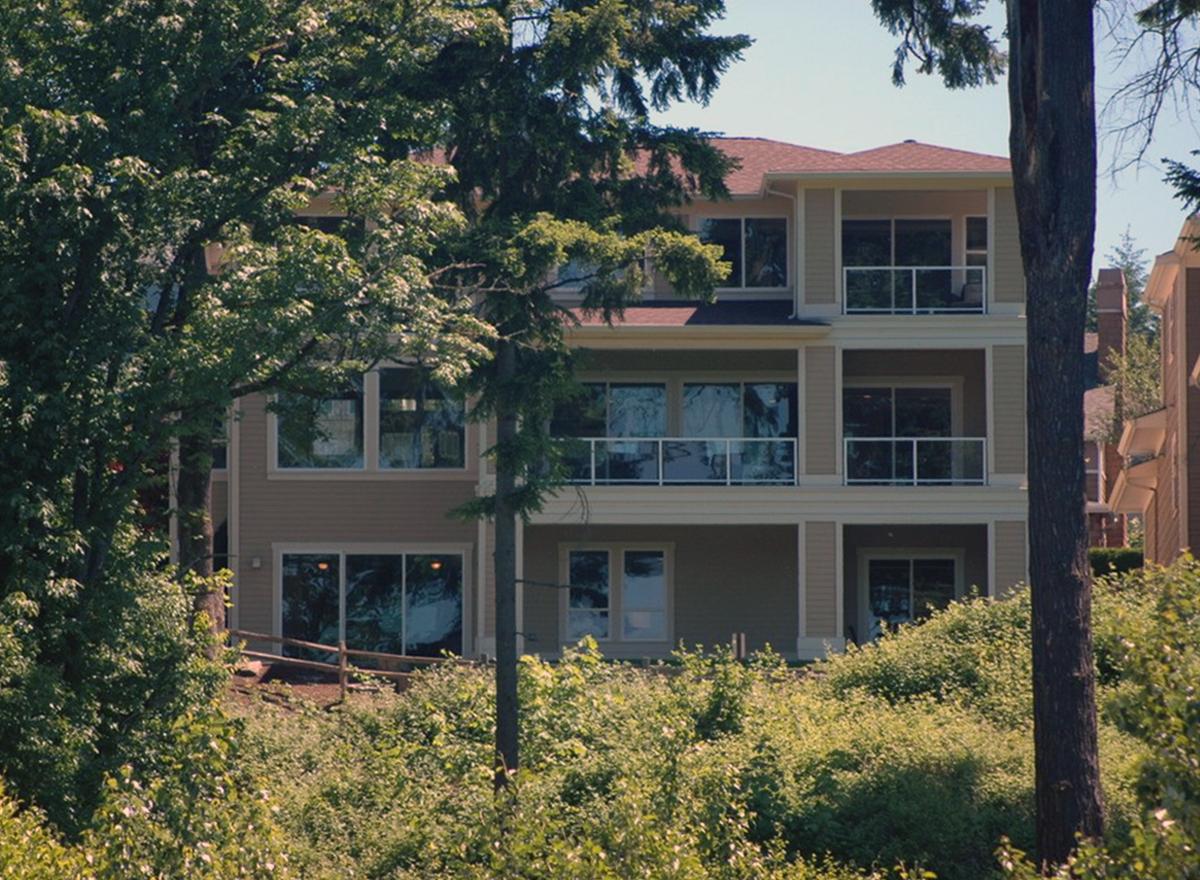

  • View Lot (Rear) Plans
