Plan Pricing

$0

LAKELEE

M4170A2F-0
  • Total Area:4170 Sq. Ft.
  • Garage Area:825 Sq Ft
  • Garage Size:2
  • Stories:2
  • Bedrooms:4
  • Full Baths:5
  • Half Baths:1
  • Width:81'-0"
  • Depth:56'-0"
  • Height:24'-0"
  • Foundation:Slab
PLAN DETAILS FOR THE LAKELEE - PLAN M4170A2F-0
Area Summary
  • Total Area:4170 Sq. Ft.

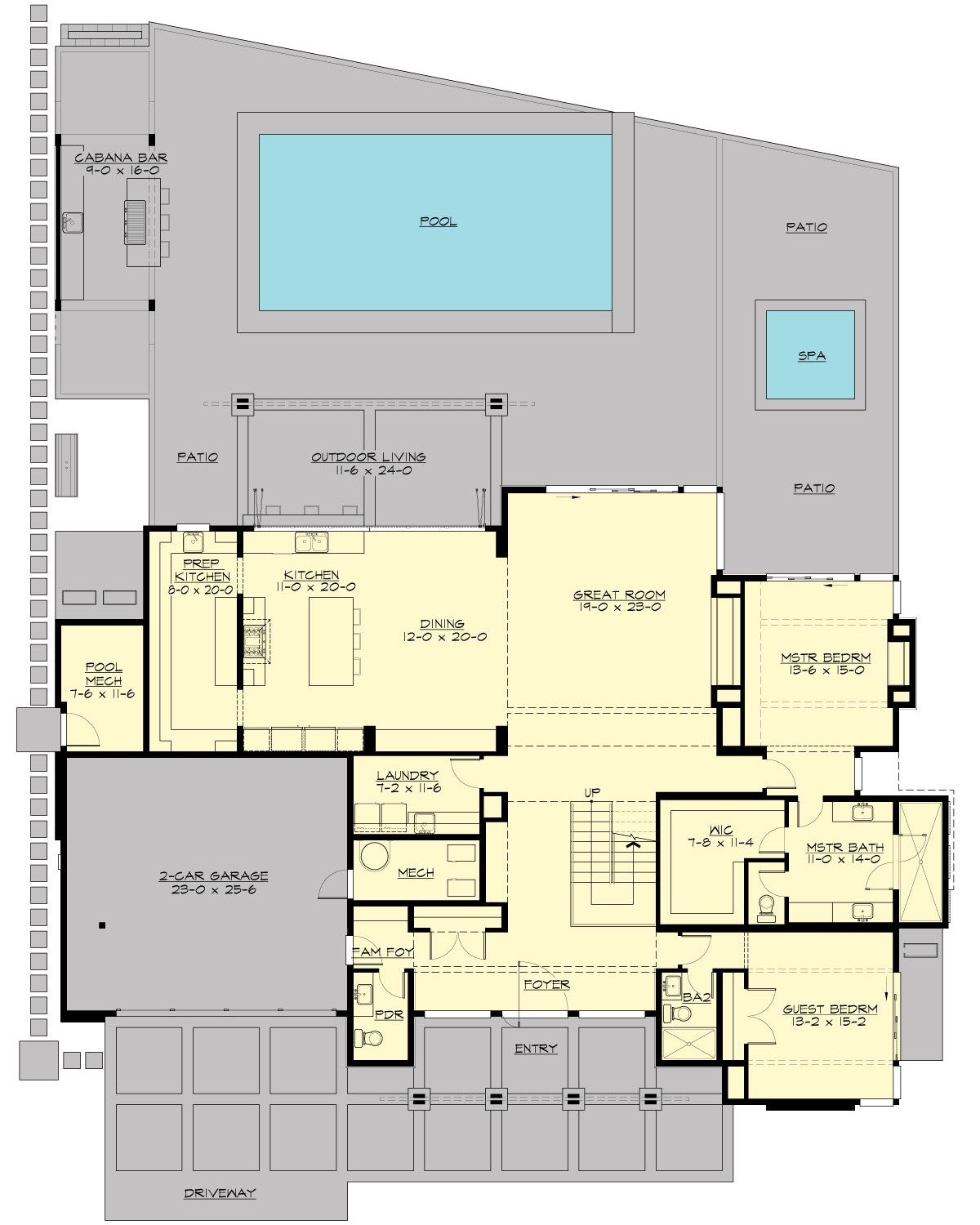

  • Main Floor:2705 Sq. Ft.

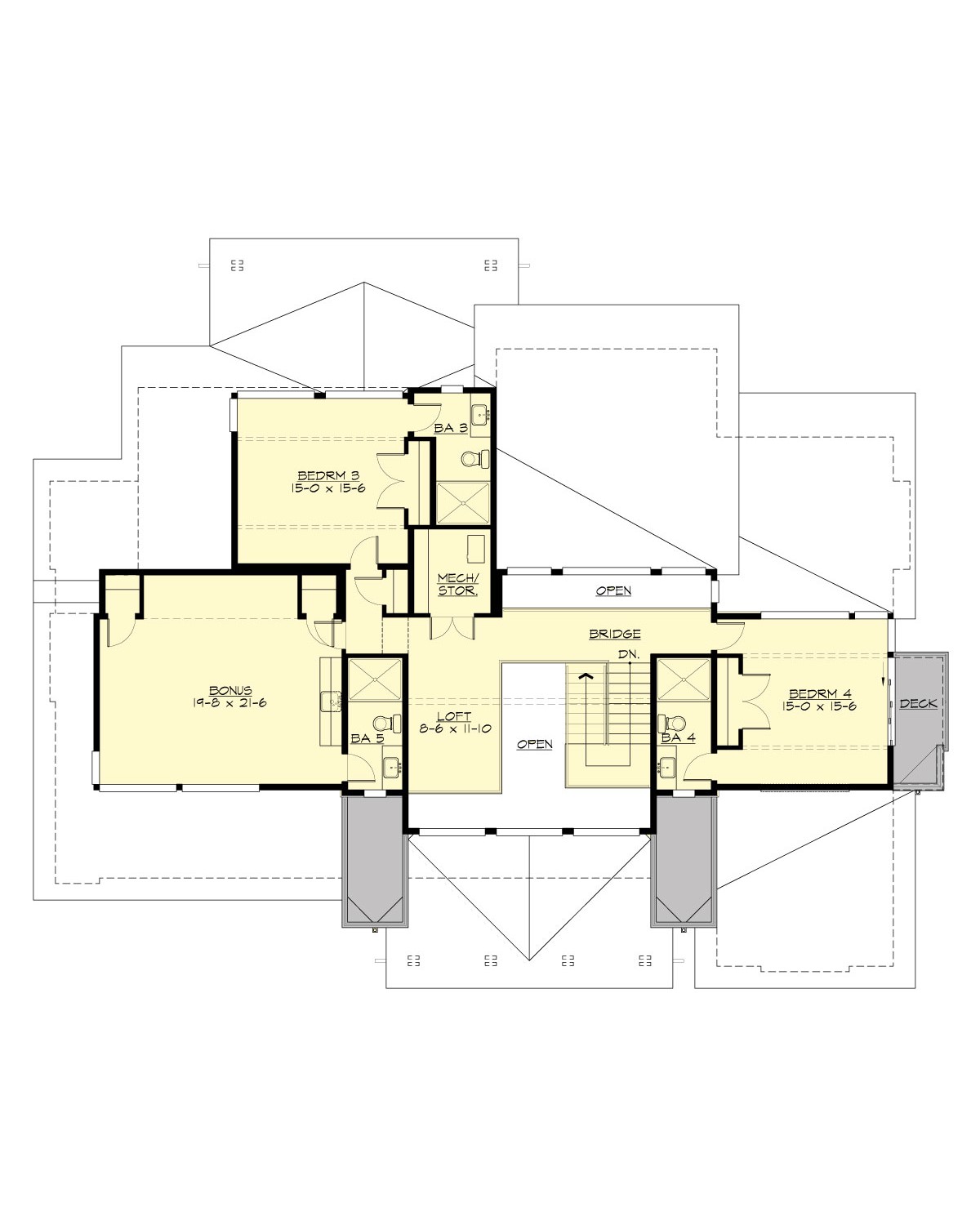

  • Upper Floor:1465 Sq. Ft.
  • Garage Floor:825 Sq. Ft.
General Information
  • Stories:2
  • Width:81'-0"
  • Depth:56'-0"
  • Height:24'-0"
Architectural Style
  • Contemporary
  • Modern
  • Northwest
Number of Rooms
  • Bedrooms:4
  • Full Baths:5
  • Half Baths:1
Garage
  • Garage Size:2
  • Garage Door Location:Front
Roof Pitches
  • Primary:2:12
Wall Heights
  • Main:9'-0"
  • Upper:9'-0"
Foundation Type
  • Slab On Grade
Roof Framing
  • Trusses
Floor Load
  • Live (lbs):40 PSF
  • Dead (lbs):10 PSF
Roof Load
  • Live (lbs):25 PSF
  • Dead (lbs):15 PSF
  • Wind:85 MPH
Design Features
  • Bonus Space @ & Upper Floor
  • Den/Office
  • Front and Rear Porch
  • Great Room
  • Laundry Room @ Main Floor
  • Master Bedroom @ Main Floor Rear
  • Contemporary Home Plans
  • Modern Home Plans
  • Northwest Floor Plans
  • Luxury Home Designs
  • View Lot (Rear) Plans
Please enter the zip code of your building site, then select the Go! button to view pricing information for this house plan.
